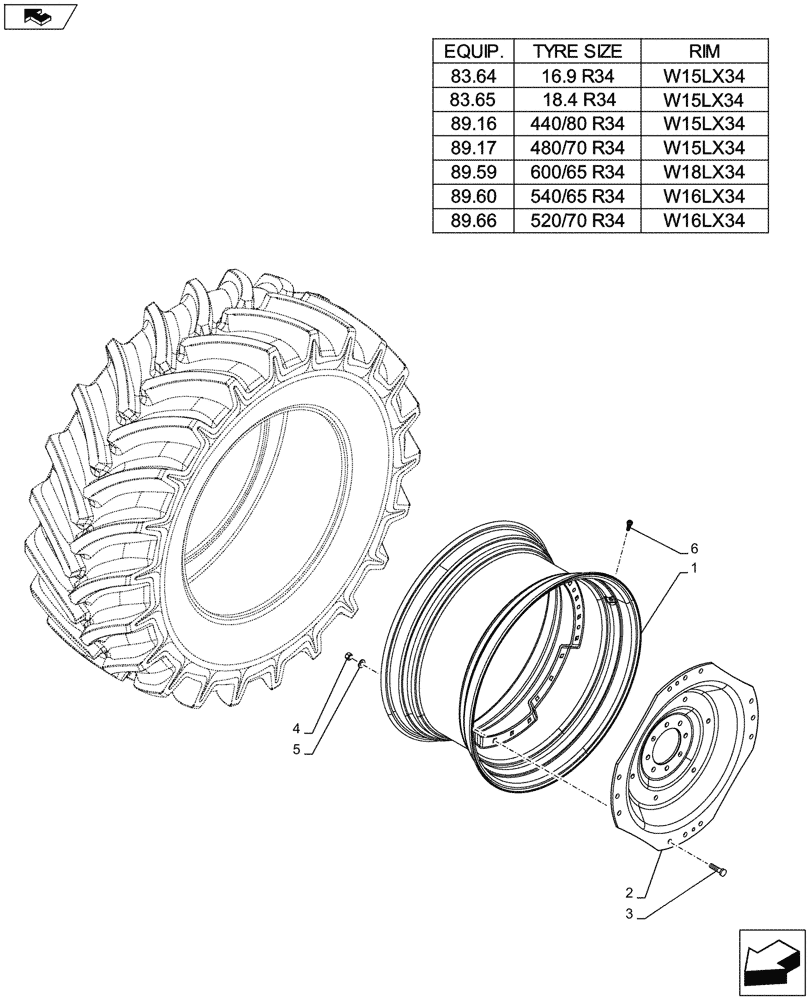

Запчасти Case IH FARMALL 105U (44.520.AB[03A]) - WHEEL - REAR - BEGIN S/N ZCJR23173 (44) - WHEELS

1

84570026

RIM,DWW15LX34, 8 Bolts, CASE Silver

W15L x 34, Serial Range: -`0

1шт.

With Equipment 83.64, 89.16, 89.17

1шт.

1

84570027

RIM,W16LX34, 8 Bolts, CASE Silver

W16L x 34, Serial Range: -`0

1шт.

With Equipment 89.60, 89.66

1шт.

1

84570030

RIM

W18L x 34, Serial Range: -`0

1шт.

With Equipment 89.59

1шт.

2

84570007

WHEEL DISC,742.9mm Dia, 8 Bolts, CASE Silver

1шт.

3

4959003

BOLT,M16 x 1.5 x 40mm, CL 10.9

8шт.

4

5186568

WASHER,16.3mm ID x 31.5mm OD x 2.5mm Thk

8шт.

5

10790524

NUT,M16 x 1.5

8шт.

6

87323751

PNEUMATIC VALVE

1шт.
