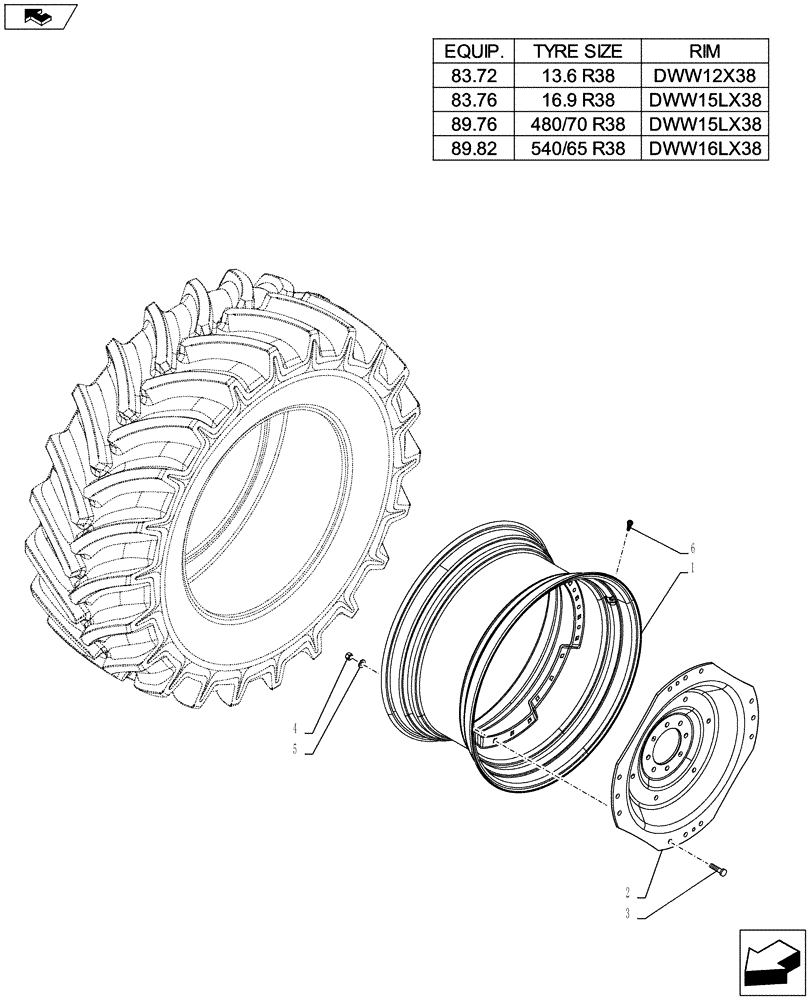

Запчасти Case IH FARMALL 105U (44.520.AB[02A]) - WHEEL - REAR - BEGIN S/N ZCJR23173 (44) - WHEELS

1

84570023

RIM,DWW12X38, 12 Bolts, CASE Silver

DWW12 x 38, Serial Range: -`0

1шт.

With Equipment 83.72

1шт.

1

84570032

RIM

DWW15L x 38, Serial Range: -`0

1шт.

With Equipment 83.76, 89.76

1шт.

1

84570036

RIM

DWW16L x 38, Serial Range: -`0

1шт.

With Equipment 89.82

1шт.

2

84570000

WHEEL DISC,793.7mm Dia, 12 Bolts, CASE Silver

1шт.

3

4959003

BOLT,M16 x 1.5 x 40mm, CL 10.9

12шт.

4

5186568

WASHER,16.3mm ID x 31.5mm OD x 2.5mm Thk

12шт.

5

12164124

NUT,M16 x 1.5, Cl 8

12шт.

6

87323751

PNEUMATIC VALVE

1шт.
