(44.520.AB[01]) - WHEEL - REAR - END S/N ZCJR23172

Запчасти Case IH FARMALL 105U (44.520.AB[01]) - WHEEL - REAR - END S/N ZCJR23172 (44) - WHEELS

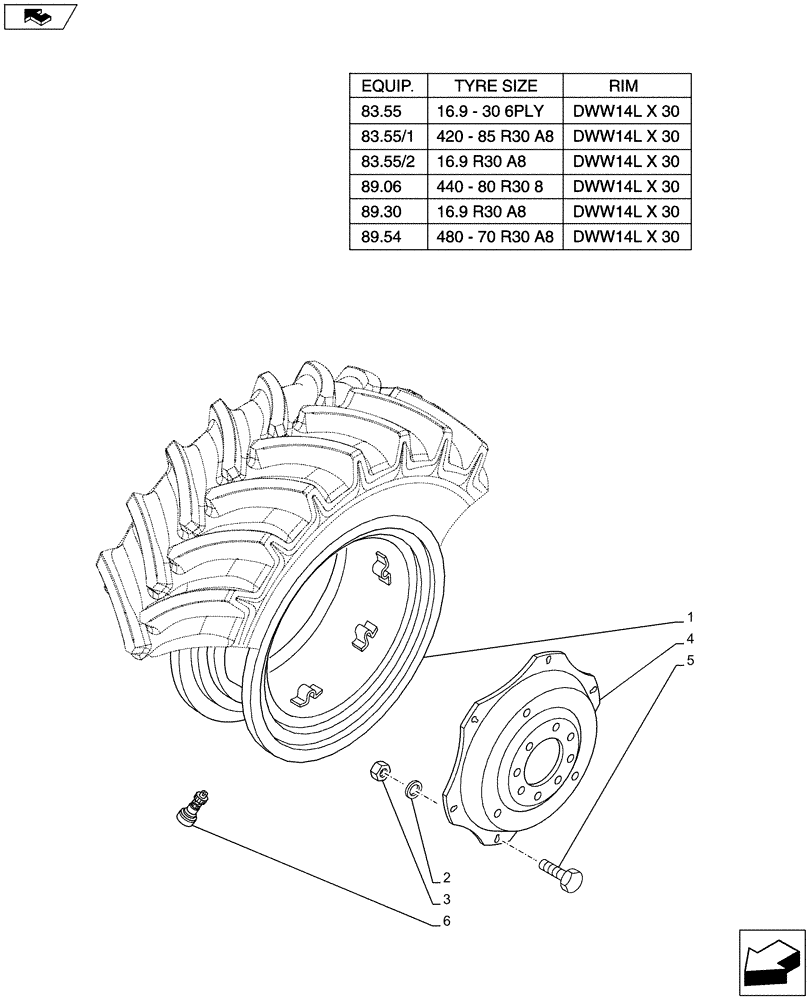

Схема запчастей Case IH FARMALL 105U - (44.520.AB[01]) - WHEEL - REAR - END S/N ZCJR23172 (44) - WHEELS
home
6
2
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47128181

RIM,DWW14L x 30, 6 Bolts, CASE Silver

DWW14L x 30

1шт.

With Equipment 83.55, 83.55/1, 83.55/2, 89.06, 89.30, 89.54

1шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

8шт.

3

10790524

NUT,M16 x 1.5

8шт.

4

47128166

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

D=616, Silver

1шт.

5

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

8шт.

6

87323751

PNEUMATIC VALVE

1шт.

Выбрано товаров: 7
