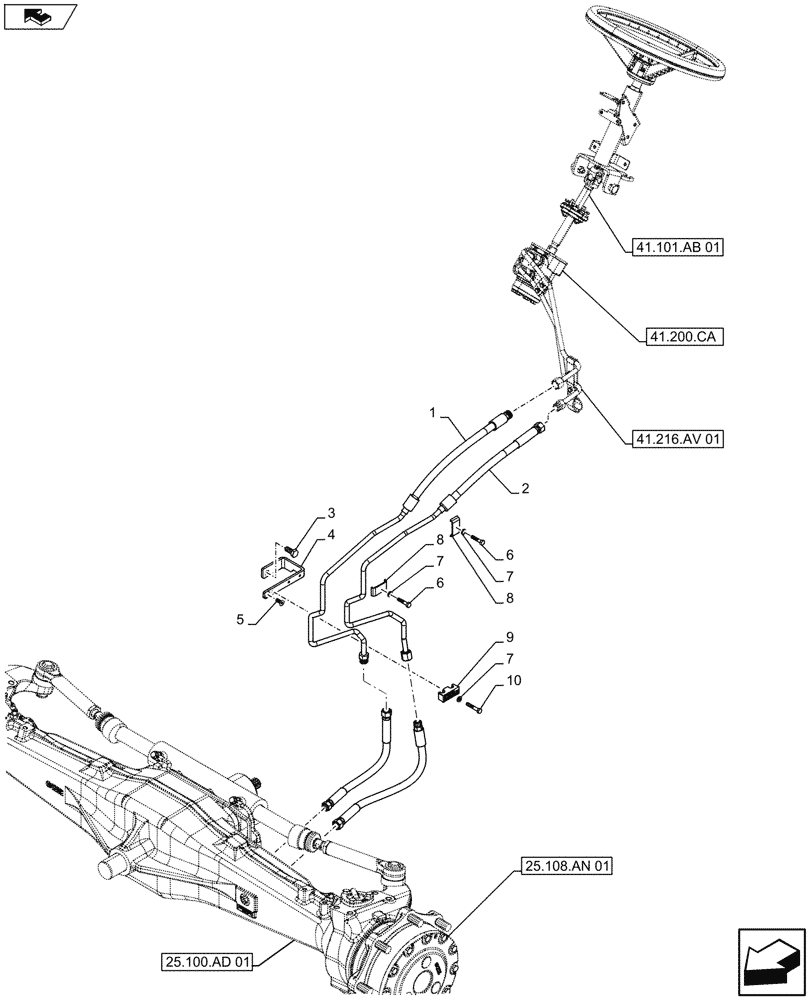

Запчасти Case IH FARMALL 105U (41.216.AV[02]) - STD + VAR - 392644 - STEERING CYLINDER HYD. LINE - END YR 13-JAN-2013 (41) - STEERING

1

84556949

HYD TUBE

To Steering Cylinder, LH

1шт.

2

84556952

PIPE

To Steering Cylinder, RH

1шт.

3

15542721

SCREW,Hex, M12 x 1.25 x 28mm, Cl 8.8, Full Thd

1шт.

4

84473536

PLATE

1шт.

5

14442031

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9

1шт.

6

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

2шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

8

84473539

PLATE

2шт.

9

87325889

BRACKET

1шт.

10

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

11

84490390

PIPE

RH

1шт.

12

84490389

PIPE

LH

1шт.
