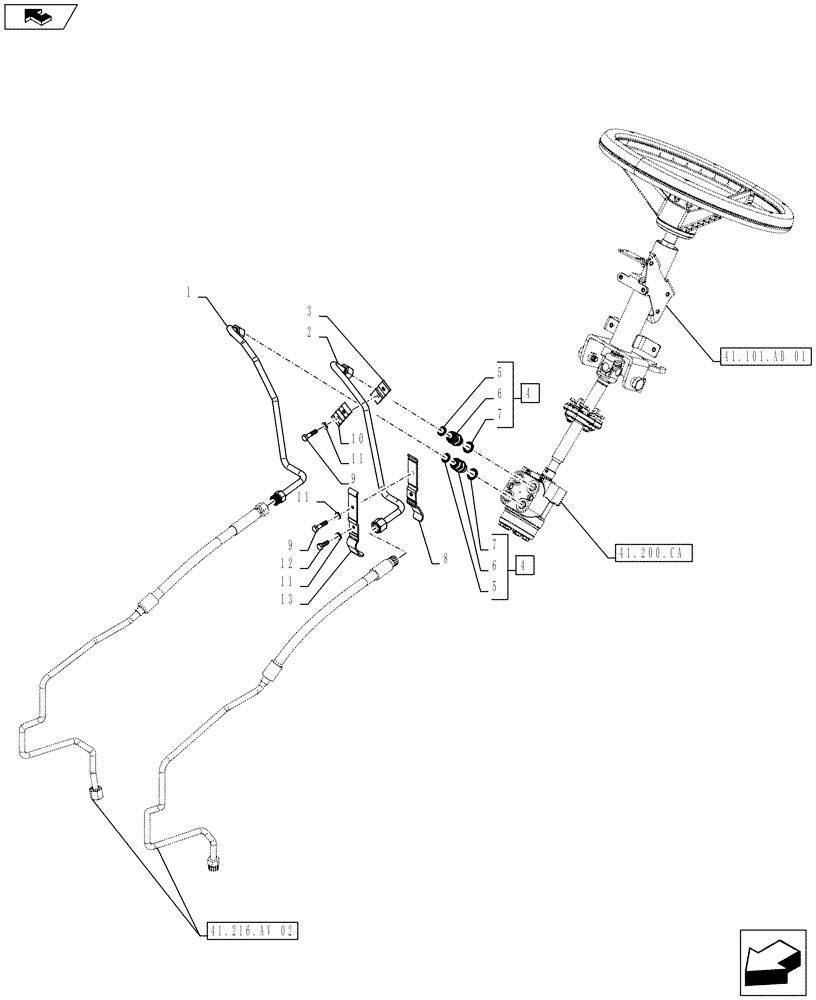

Запчасти Case IH FARMALL 105U (41.216.AV[01]) - STD + VAR - 392644 - STEERING LINE - END YR 13-JAN-2013 (41) - STEERING

1

84548903

PIPE

Steering Cylinder

1шт.

2

84548906

TUBE

Steering Cylinder

1шт.

3

84313880

BRACKET

1шт.

4

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 5 - 7

2шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

Incl in 4

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

Incl in 4

2шт.

8

84563630

BRACKET

1шт.

9

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

10

84263886

BRACKET

1шт.

11

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

12

10902311

BOLT,Hex, M6 x 18mm, Cl 5.8, Full Thd

1шт.

13

84563627

BRACKET

1шт.
