(41.216.AA[01]) - STD + VAR - 390399 - 4WD FRONT AXLE, STEERING CYLINDER, W/ LIMITED SLIP DIFFERENTIAL

Запчасти Case IH FARMALL 105U (41.216.AA[01]) - STD + VAR - 390399 - 4WD FRONT AXLE, STEERING CYLINDER, W/ LIMITED SLIP DIFFERENTIAL (41) - STEERING

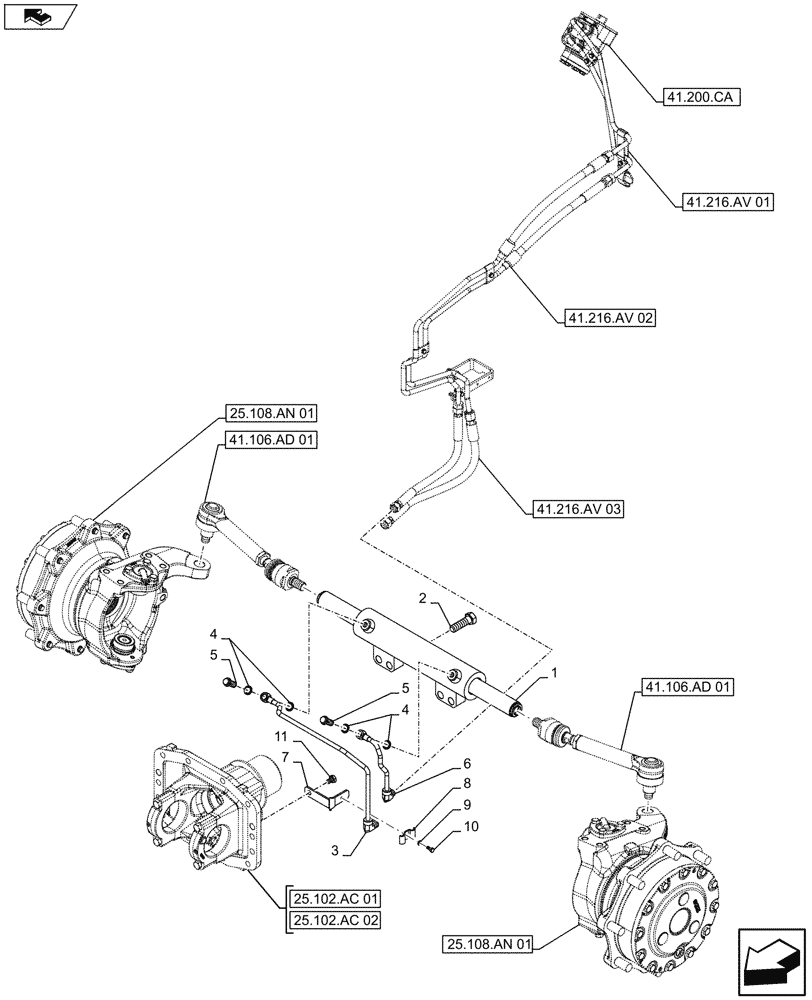

Схема запчастей Case IH FARMALL 105U - (41.216.AA[01]) - STD + VAR - 390399 - 4WD FRONT AXLE, STEERING CYLINDER, W/ LIMITED SLIP DIFFERENTIAL (41) - STEERING
41.216.av 03
8
home
4
4
6
1
5
2
10
home
1
7
9
1
5
3
25.102.ac 01
41.200.ca
41.216.av 02
25.102.ac 02
25.108.an 01
25.108.an 01
41.106.ad 01
41.106.ad 01
41.216.av 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84477825

STEERING CYLINDER

1шт.

2

84273750

LOCK BOLT

4шт.

3

84486746

PIPE

RH

1шт.

4

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

4шт.

5

87736840

BOLT,M14 x 1.5 x 30mm

2шт.

6

84486764

PIPE

LH

1шт.

7

84486781

BRACKET

1шт.

8

4999554

CLAMP,2 Hoses

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

12шт.

11

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

1шт.
