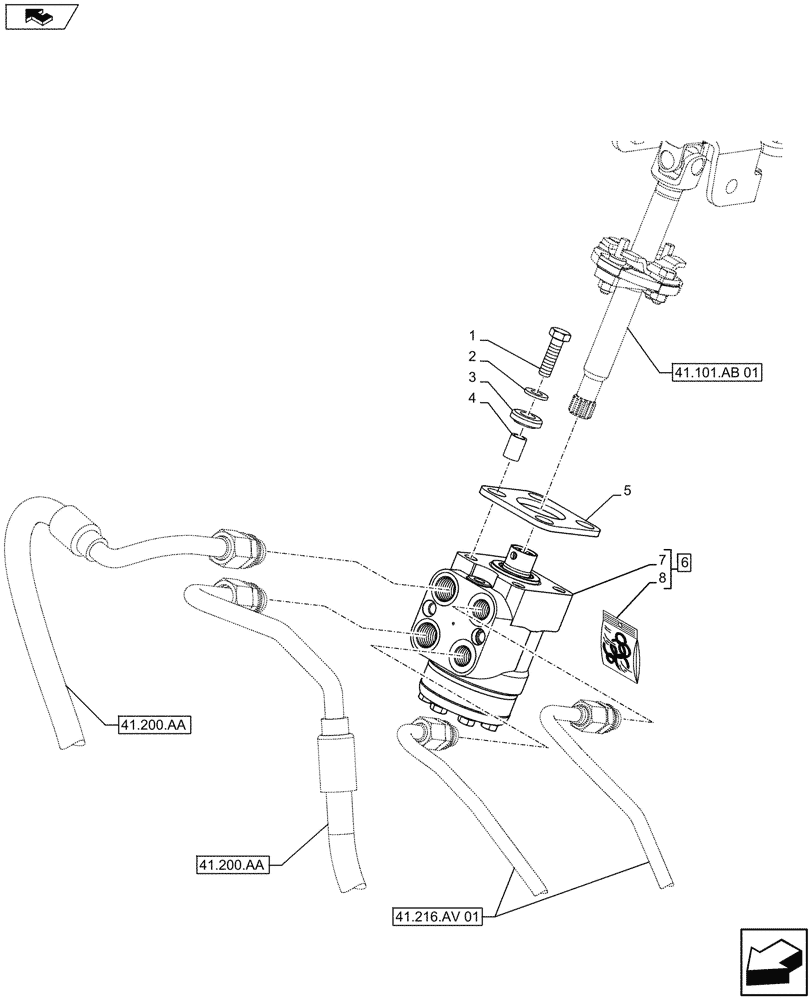

Запчасти Case IH FARMALL 105U (41.200.CA) - STD + VAR - 392644 - STEERING VALVE (41) - STEERING

1

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

2

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

3

5091785

BUSHING,14mm ID x 20mm OD x 8mm L

4шт.

4

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.

5

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

6

47137771

HYDRAULIC STEERING

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Steering Valve, Incl in 6

1шт.

8

5196607

SEAL KIT

1шт.
