(41.200.AO[02]) - STD + VAR - 390335 - STEERING LINE, SUPPORT (W/O PNEUMATIC TRAILER BRAKE)

Запчасти Case IH FARMALL 105U (41.200.AO[02]) - STD + VAR - 390335 - STEERING LINE, SUPPORT (W/O PNEUMATIC TRAILER BRAKE) (41) - STEERING

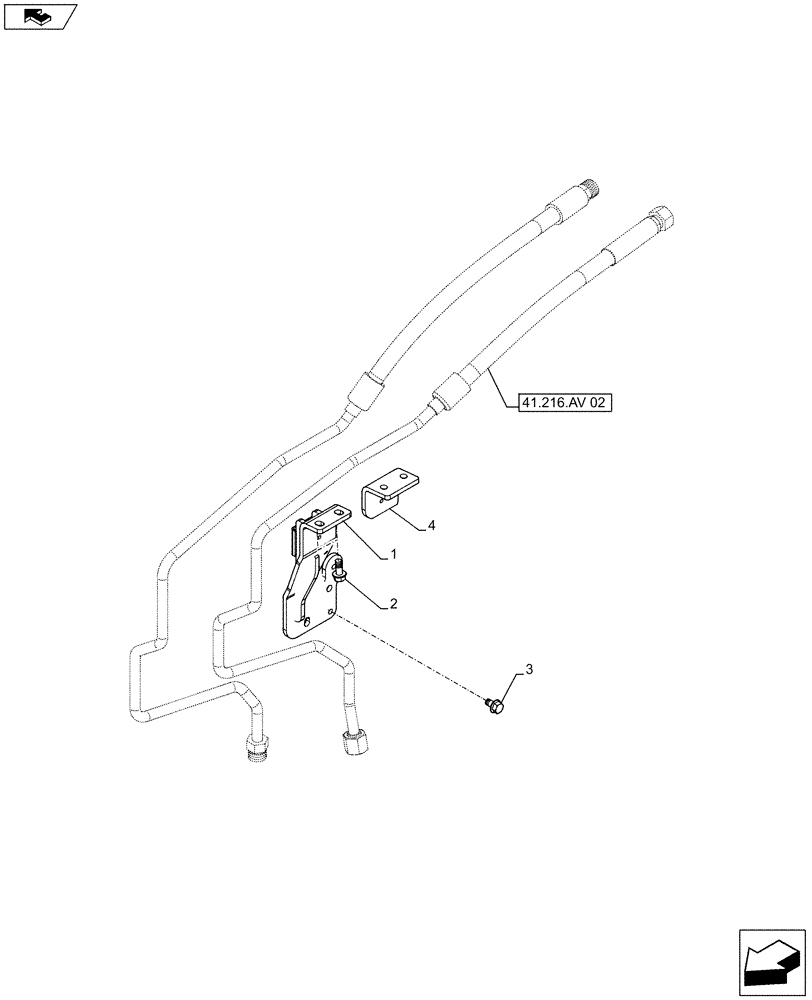

Схема запчастей Case IH FARMALL 105U - (41.200.AO[02]) - STD + VAR - 390335 - STEERING LINE, SUPPORT (W/O PNEUMATIC TRAILER BRAKE) (41) - STEERING
home
1
2
4
3
41.216.av
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84603089

BRACKET

1шт.

2

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

2шт.

3

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

4

47397980

SUPPORT

1шт.
