(39.140.AL[01A]) - VAR - 330470, 330471 - WHEEL WEIGHT, REAR - BEGIN S/N ZCJR23173

Запчасти Case IH FARMALL 105U (39.140.AL[01A]) - VAR - 330470, 330471 - WHEEL WEIGHT, REAR - BEGIN S/N ZCJR23173 (39) - FRAMES AND BALLASTING

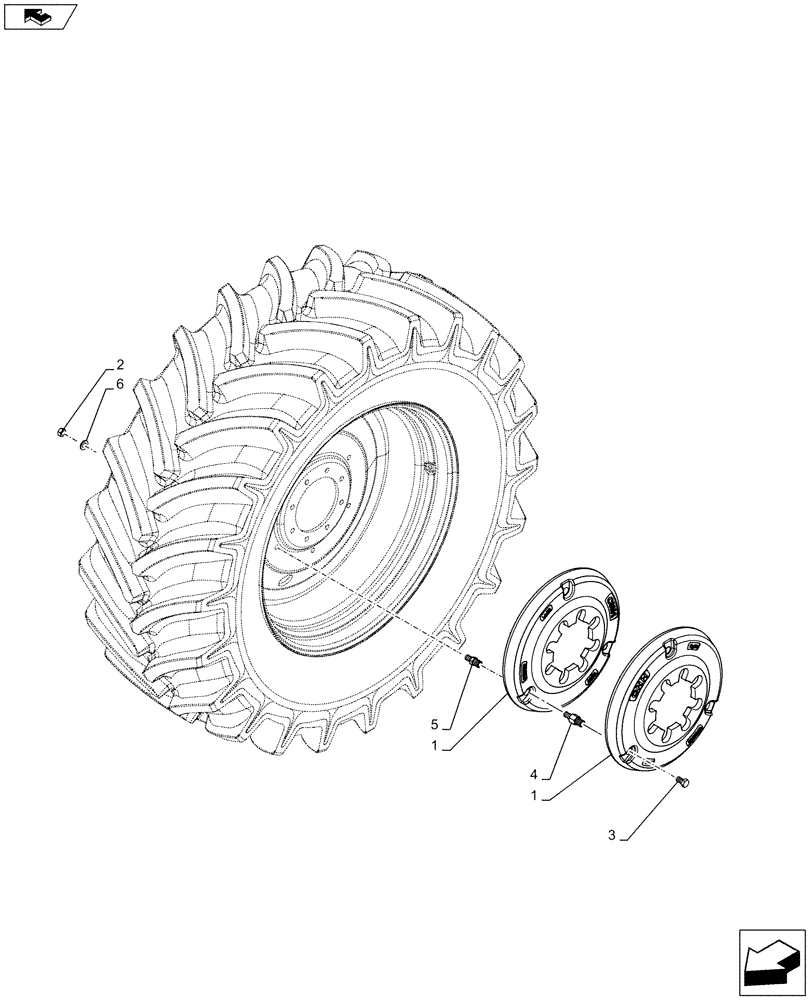

Схема запчастей Case IH FARMALL 105U - (39.140.AL[01A]) - VAR - 330470, 330471 - WHEEL WEIGHT, REAR - BEGIN S/N ZCJR23173 (39) - FRAMES AND BALLASTING
home
6
2
5
4
1
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47373519

WHEEL WEIGHT,50kg

4шт.

4 Weights, Var.330470, 6 Weights, Var.330471

1шт.

2

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

3

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

4

44018047

SCREW,M16 x 1.5 x 78mm

6шт.

5

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

6

12164124

NUT,M16 x 1.5, Cl 8

6шт.
