(37.162.AE[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, BRACKET, W/ FRONT PTO - END YR 23-JUN-2013

Запчасти Case IH FARMALL 105U (37.162.AE[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, BRACKET, W/ FRONT PTO - END YR 23-JUN-2013 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

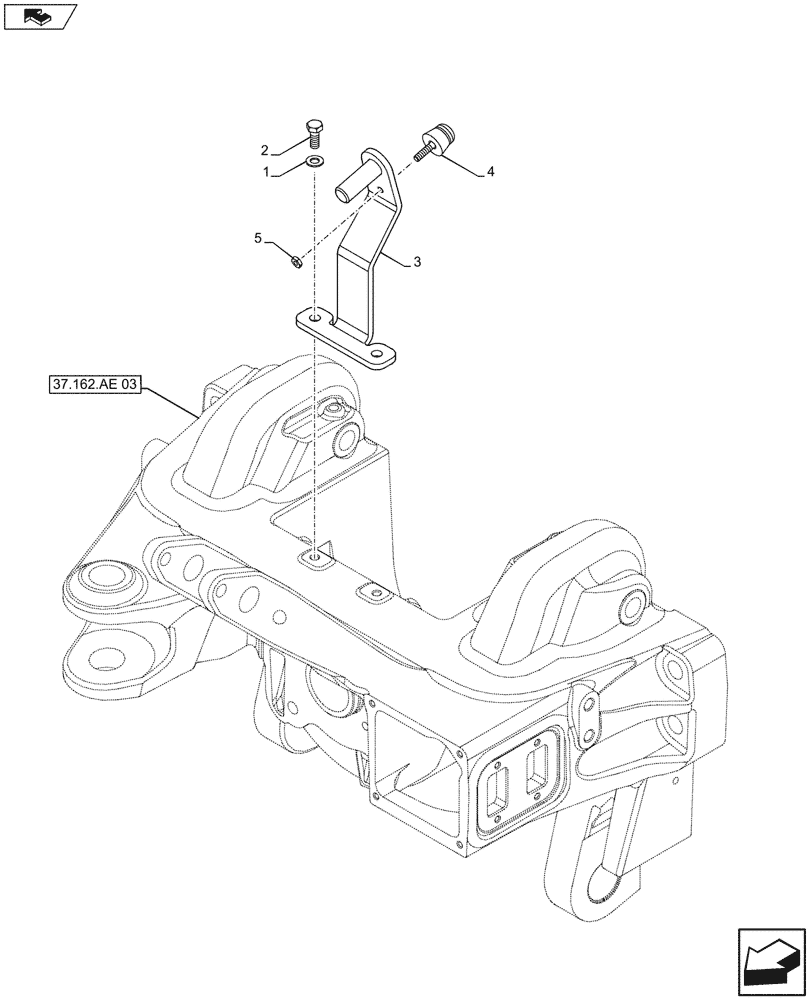

Схема запчастей Case IH FARMALL 105U - (37.162.AE[02]) - VAR - 332789 - 3 POINT HITCH, FRONT, BRACKET, W/ FRONT PTO - END YR 23-JUN-2013 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.162.ae 03
3
5
1
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

84513130

BRACKET

for Hatch Hood

1шт.

4

87316914

RUBBER PAD,8mm ID x 20mm L

1шт.

5

10725914

LOCK NUT,M6 x 1, Cl 04

1шт.

Выбрано товаров: 5
