(37.100.AB[01]) - VAR - 330912 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT, ISO

Запчасти Case IH FARMALL 105U (37.100.AB[01]) - VAR - 330912 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

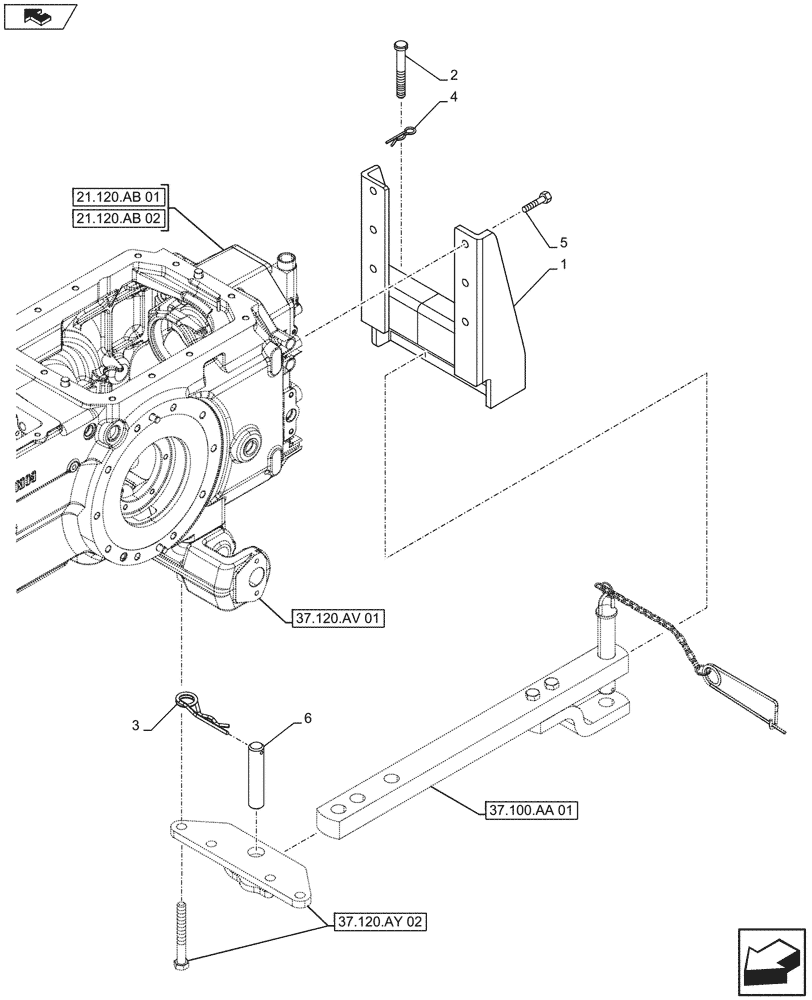

Схема запчастей Case IH FARMALL 105U - (37.100.AB[01]) - VAR - 330912 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
3
21.120.ab 01
2
home
37.100.aa 01
37.120.ay 02
37.120.av 01
21.120.ab 02
6
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199428

SUPPORT

1шт.

2

5181758

PIN,16mm OD x 119.5mm L

2шт.

3

82000094

SPRING,40mm OD x 142mm L

1шт.

4

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

5

15981521

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

6

82006933

PIN,28mm OD x 134mm L

1шт.

Выбрано товаров: 6
