(33.224.AM[03]) - VAR - 330335, 331335 - COMPRESSOR, DELIVERY PIPE, ISO

Запчасти Case IH FARMALL 105U (33.224.AM[03]) - VAR - 330335, 331335 - COMPRESSOR, DELIVERY PIPE, ISO (33) - BRAKES & CONTROLS

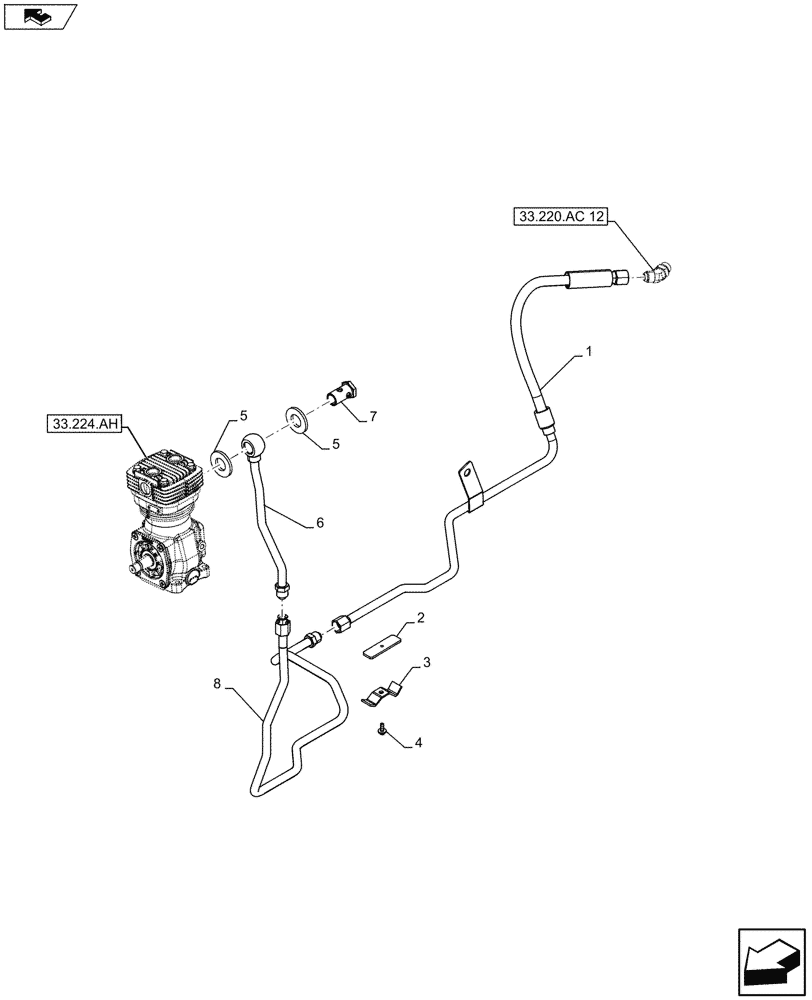

Схема запчастей Case IH FARMALL 105U - (33.224.AM[03]) - VAR - 330335, 331335 - COMPRESSOR, DELIVERY PIPE, ISO (33) - BRAKES & CONTROLS
33.224.ah
8
2
7
6
4
5
1
3
5
home
33.220.ac 12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47452258

HYD TUBE

Delivery Pipe from Compressor to Tank

1шт.

2

47452266

BRACKET

1шт.

3

47452265

BRACKET

1шт.

4

10902721

SCREW,Hex, M6 x 28mm, Cl 8.8, Full Thd

1шт.

5

11270960

WASHER,26.3mm ID x 30.9mm OD x 2mm Thk

2шт.

6

47490697

TUBE

Delivery Pipe from Compressor to Tank

1шт.

7

87622367

BANJO BOLT

1шт.

8

47452256

PIPE

Delivery Pipe from Compressor to Tank

1шт.
