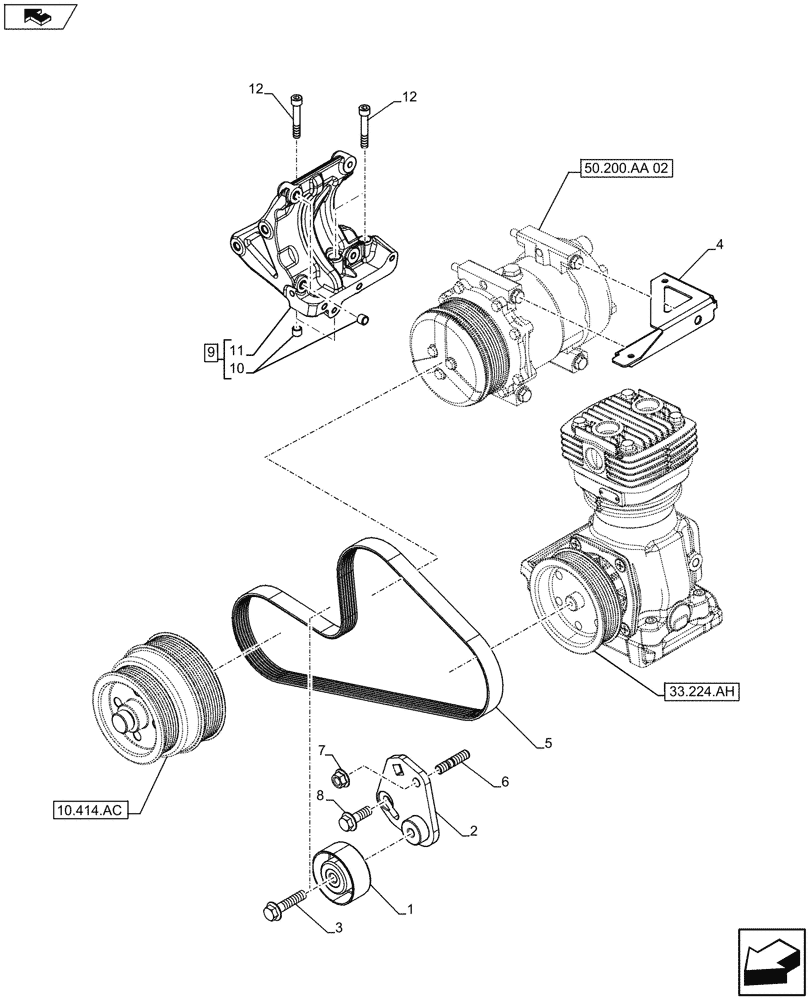

Запчасти Case IH FARMALL 105U (33.224.AL[02]) - VAR - 330335, 331335 - COMPRESSOR, BELT, SUPPORT, ISO (W/ PNEUMATIC TRAILER BRAKE, W/ AIR CONDITIONING) (33) - BRAKES & CONTROLS

1

47385742

IDLER

Pulley

1шт.

2

47478529

SUPPORT

Pulley

1шт.

3

87675532

BOLT,Hex, M10 x 45mm, Cl 10.9

1шт.

4

47396553

SUPPORT

1шт.

5

84594326

BELT,21.36mm W x 1067mm L, 6 Ribs

6mm W, 1067mm L, 6 Ribs

1шт.

6

4899402

STUD,M10 x 1.5 x 45.00mm

1шт.

7

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

1шт.

8

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

1шт.

9

47563906

BRACKET

ASSY, Incl 10, 11

1шт.

10

87674545

BUSHING,8.5mm ID x 11.15mm OD x 9mm L

4шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 9

1шт.

12

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

3шт.
