(33.220.AC[15]) - VAR - 331335 - TRAILER BRAKE VALVE, LINE, ISO (PNEUMATIC TRAILER BRAKE, ITALY)

Запчасти Case IH FARMALL 105U (33.220.AC[15]) - VAR - 331335 - TRAILER BRAKE VALVE, LINE, ISO (PNEUMATIC TRAILER BRAKE, ITALY) (33) - BRAKES & CONTROLS

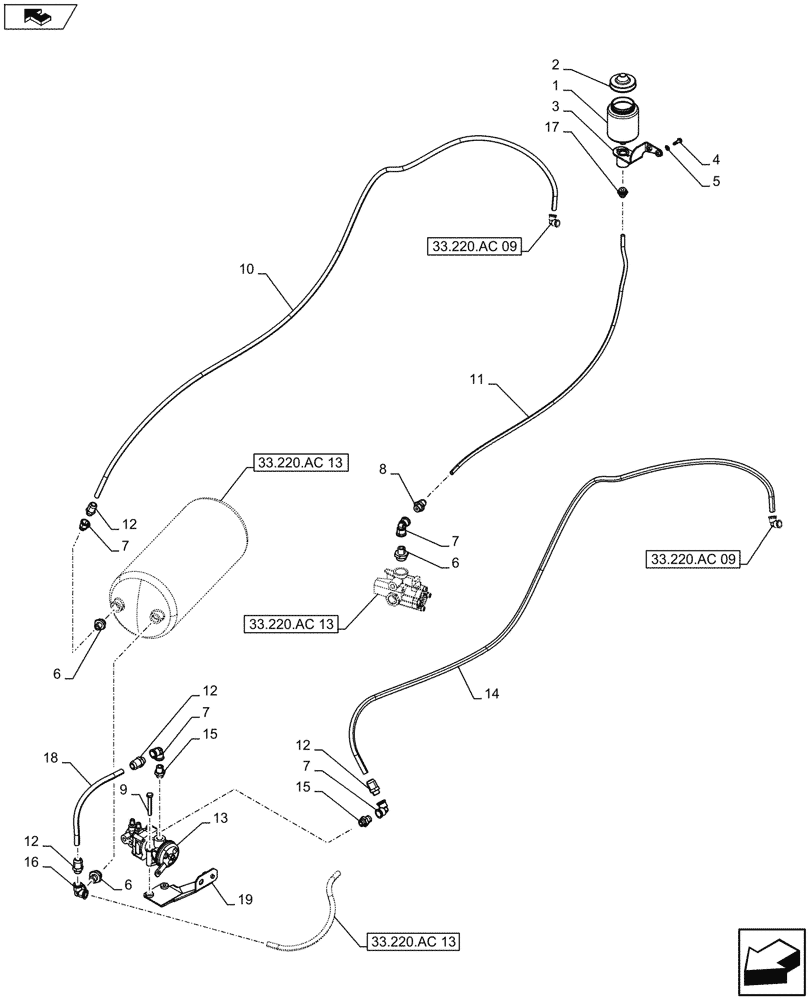

Схема запчастей Case IH FARMALL 105U - (33.220.AC[15]) - VAR - 331335 - TRAILER BRAKE VALVE, LINE, ISO (PNEUMATIC TRAILER BRAKE, ITALY) (33) - BRAKES & CONTROLS
33.220.ac 09
7
6
7
18
19
8
15
6
7
9
12
7
13
11
12
4
10
2
17
home
6
12
14
3
16
12
1
15
5
33.220.ac 13
33.220.ac 13
33.220.ac 13
33.220.ac 09
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47365161

RESERVOIR,0.5L

1шт.

2

47365162

COVER

1шт.

3

47365156

BRACKET

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

5

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

87306534

FITTING,Straight, M22 x 1.5, P5 Plug-In Coupling

3шт.

7

87343839

ELBOW,90°, M16 x 1.5, P5 Plug-in Coupling

3шт.

8

87343795

FITTING

1шт.

9

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

10

47372660

PLASTIC-RUBBER TUBE,1770 mm L

1шт.

11

47372674

PLASTIC-RUBBER TUBE

1шт.

12

87343650

UNION,Straight, M16 x 1.5, 12mm Push-In Coupling

4шт.

13

87340472

CONTROL VALVE

1шт.

14

47372661

PLASTIC-RUBBER TUBE,2010 mm L

1шт.

15

87306535

FITTING

2шт.

16

87343785

FITTING

1шт.

17

84580825

PIPE COUPLING

1шт.

18

47372673

PLASTIC-RUBBER TUBE

1шт.

19

47543431

BRACKET

1шт.
