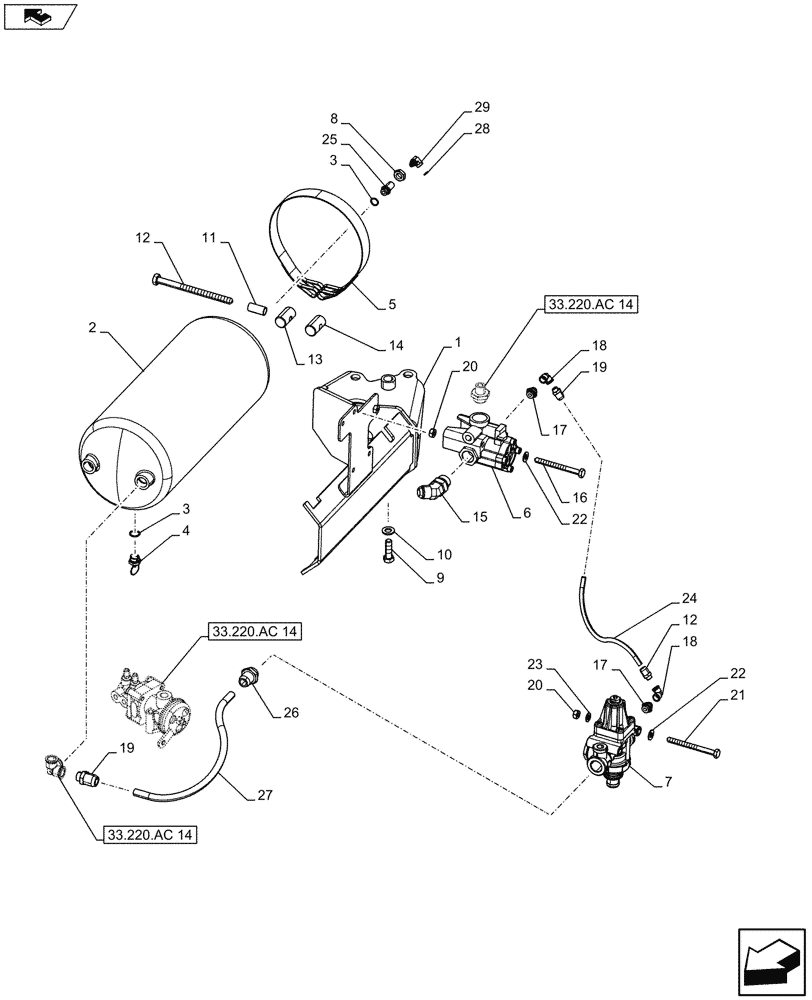

Запчасти Case IH FARMALL 105U (33.220.AC[12]) - VAR - 330335 - AIR RESERVOIR, VALVE, PUMP, ISO (33) - BRAKES & CONTROLS

1

47480027

BRACKET

Black, Tank and Valve, Years: -10-JUN-13

1шт.

1

47542908

BRACKET

Black, Tank and Valve, Start Year: 11-JUN-13

1шт.

2

87360796

AIR RESERVOIR

15 Liters

1шт.

3

11270860

SEAL,22.2mm ID x 26.9mm OD x 1.5mm Thk

1шт.

4

87343614

VALVE PRESSURE RELIE

Drain

1шт.

5

87332059

SECURING STRAP

1шт.

6

47365160

PUMP

1шт.

7

87340463

VALVE

1шт.

8

87564754

THIN NUT

1шт.

9

11244634

BOLT,Hex, M18 x 1.5 x 60, 10.9

1шт.

10

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

1шт.

11

87343579

SPACER,9mm ID x 11mm OD x 23mm L

1шт.

12

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

1шт.

13

87343586

PIN

1шт.

14

87343592

PIN

1шт.

15

47502345

45 ELBOW

1шт.

16

16044921

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

17

87306534

FITTING,Straight, M22 x 1.5, P5 Plug-In Coupling

2шт.

18

87343839

ELBOW,90°, M16 x 1.5, P5 Plug-in Coupling

2шт.

19

87343650

UNION,Straight, M16 x 1.5, 12mm Push-In Coupling

2шт.

20

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

21

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

22

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

23

11198074

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

4шт.

24

47372671

PLASTIC-RUBBER TUBE

1шт.

25

47372662

HYD CONNECTOR

1шт.

26

87343519

ADAPTER

1шт.

27

84562605

PLASTIC-RUBBER TUBE

1шт.

28

84584945

SEAL

1шт.

29

87537887

90 ELBOW

1шт.
