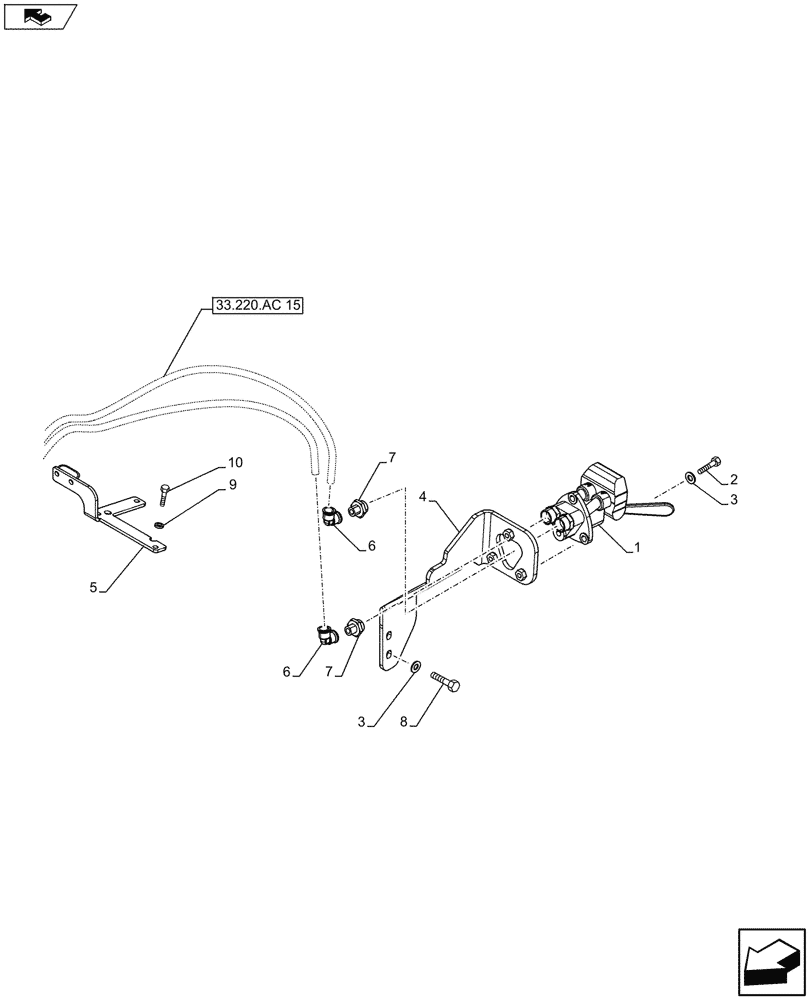

Запчасти Case IH FARMALL 105U (33.220.AC[09]) - VAR - 331335 - BRACKET, QUICK COUPLER, ITALY, ISO (33) - BRAKES & CONTROLS

1

87692947

PUSH-PULL COUPLING

Cuna Type

1шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

3

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

5шт.

4

47480092

BRACKET

Black

1шт.

5

47480091

BRACKET

Black

1шт.

6

87343839

ELBOW,90°, M16 x 1.5, P5 Plug-in Coupling

2шт.

7

87306534

FITTING,Straight, M22 x 1.5, P5 Plug-In Coupling

2шт.

8

11106334

SCREW,Hex, M10 x 28mm, Cl 10.9

2шт.

9

12648400

WASHER,8.15mm ID x 15mm OD x 3mm Thk

3шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.
