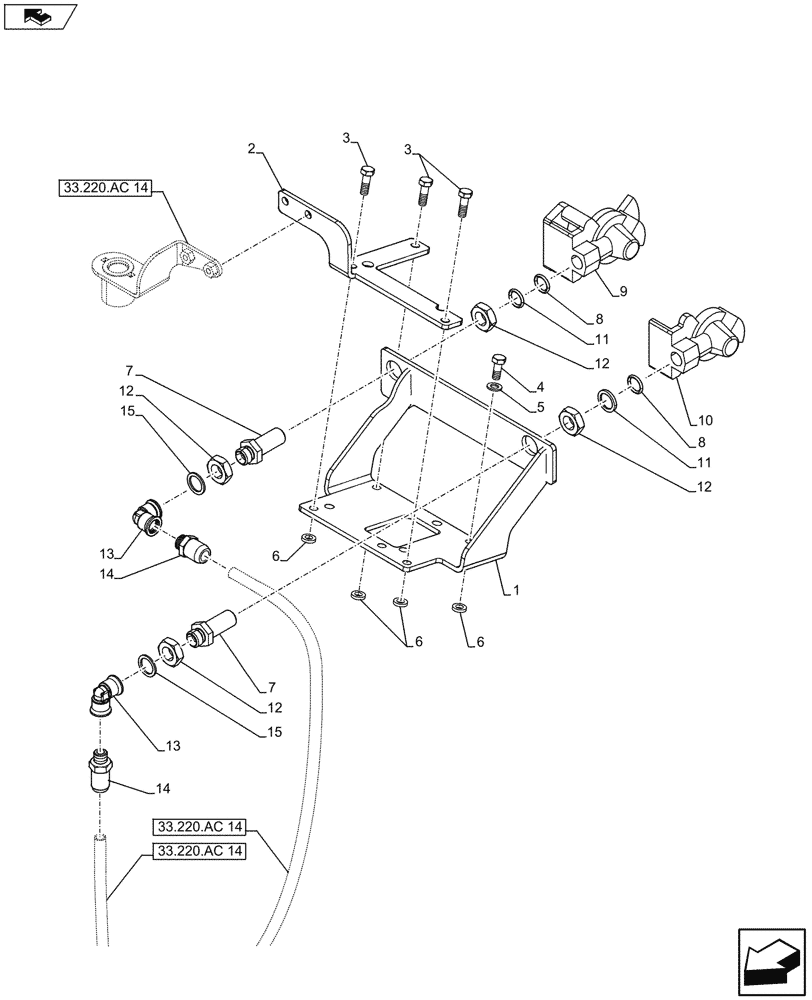

Запчасти Case IH FARMALL 105U (33.220.AC[08]) - VAR - 330335 - BRACKET, QUICK COUPLER, GERMANY, ISO (33) - BRAKES & CONTROLS

1

47480093

BRACKET

Black

1шт.

2

47480091

BRACKET

Black

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

12648400

WASHER,8.15mm ID x 15mm OD x 3mm Thk

4шт.

7

87346697

FITTING

2шт.

8

87346554

SEALING WASHER

2шт.

9

87340483

QUICK MALE COUPLING,Red

Red

1шт.

10

87340491

QUICK MALE COUPLING,Yellow

Yellow

1шт.

11

87346568

O-RING,2.5mm Thk x 14mm ID, 70 Duro

2шт.

12

10791414

THIN NUT,M16 x 1.5

4шт.

13

87346513

ELBOW

2шт.

14

87343650

UNION,Straight, M16 x 1.5, 12mm Push-In Coupling

2шт.

15

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

2шт.
