Запчасти Case IH FARMALL 105U (33.204.AP[02]) - VAR - 330415 - FRONT AXLE, BRAKE LINES, ISO (33) - BRAKES & CONTROLS

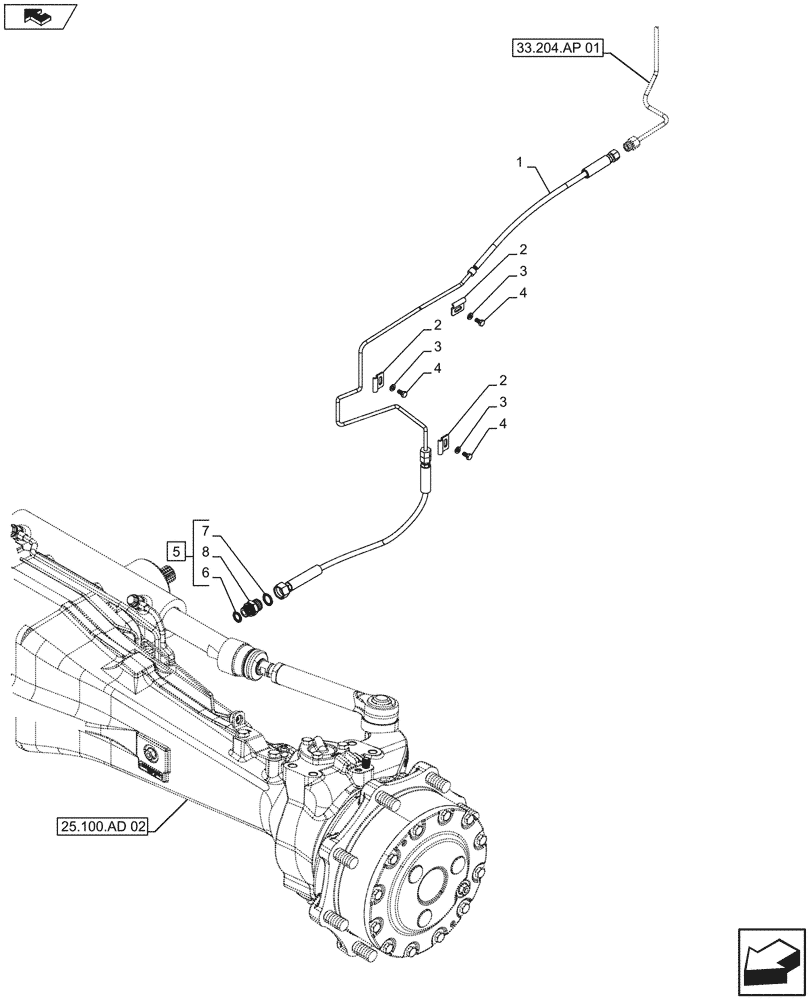

Схема запчастей Case IH FARMALL 105U - (33.204.AP[02]) - VAR - 330415 - FRONT AXLE, BRAKE LINES, ISO (33) - BRAKES & CONTROLS
25.100.ad 02
8
3
home
4
3
5
3
2
2
home
4
4
2
7
6
1
33.204.ap 01

Артикул

Название

Примечание

Количество

1

47415471

BRAKE LINE

Front Brakes, Years: -13-JAN-13

1шт.

1

47381881

BRAKE LINE

Front Brakes, Start Year: 14-JAN-13

1шт.

2

84474589

BRACKET

3шт.

3

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

4

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

5

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 6 - 8

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

Выбрано товаров: 9
