(33.202.AR[03]) - VAR - 330415 - BRAKE CYLINDER, ISO

Запчасти Case IH FARMALL 105U (33.202.AR[03]) - VAR - 330415 - BRAKE CYLINDER, ISO (33) - BRAKES & CONTROLS

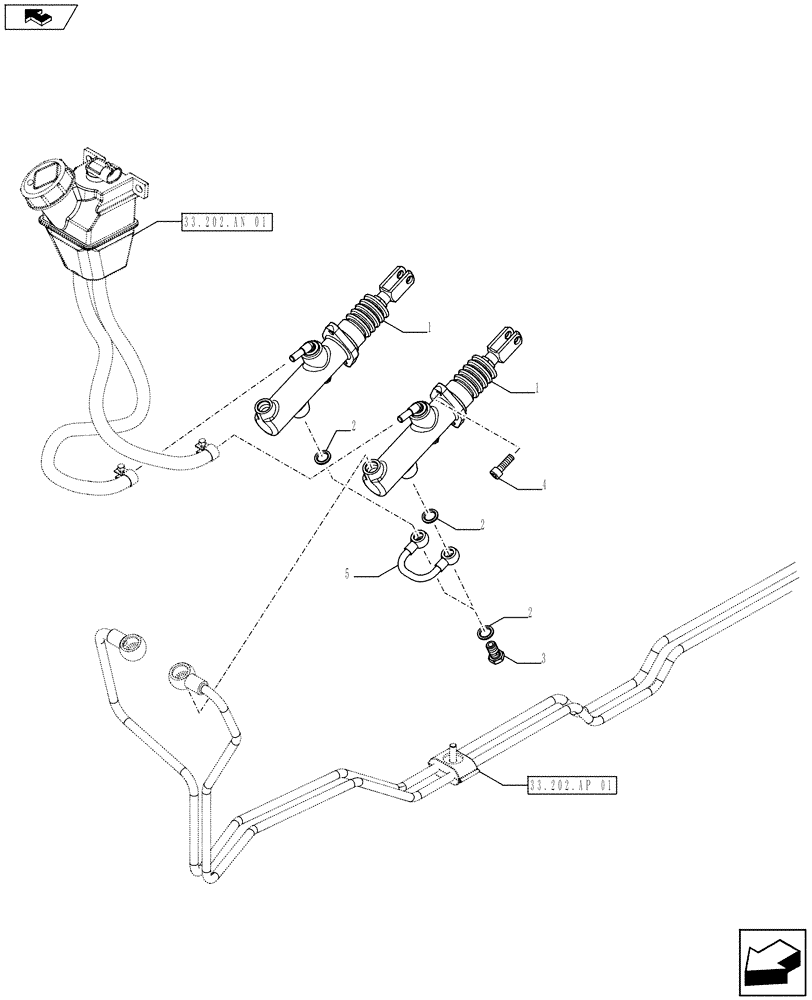

Схема запчастей Case IH FARMALL 105U - (33.202.AR[03]) - VAR - 330415 - BRAKE CYLINDER, ISO (33) - BRAKES & CONTROLS
33.202.an 01
5
3
2
1
2
1
2
4
home
33.202.ap (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87354681

MASTER CYLINDER,38.3mm Stroke

2шт.

2

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

3

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

4

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

5155701

TUBE

Pressure, Brake Master Cylinder

1шт.
