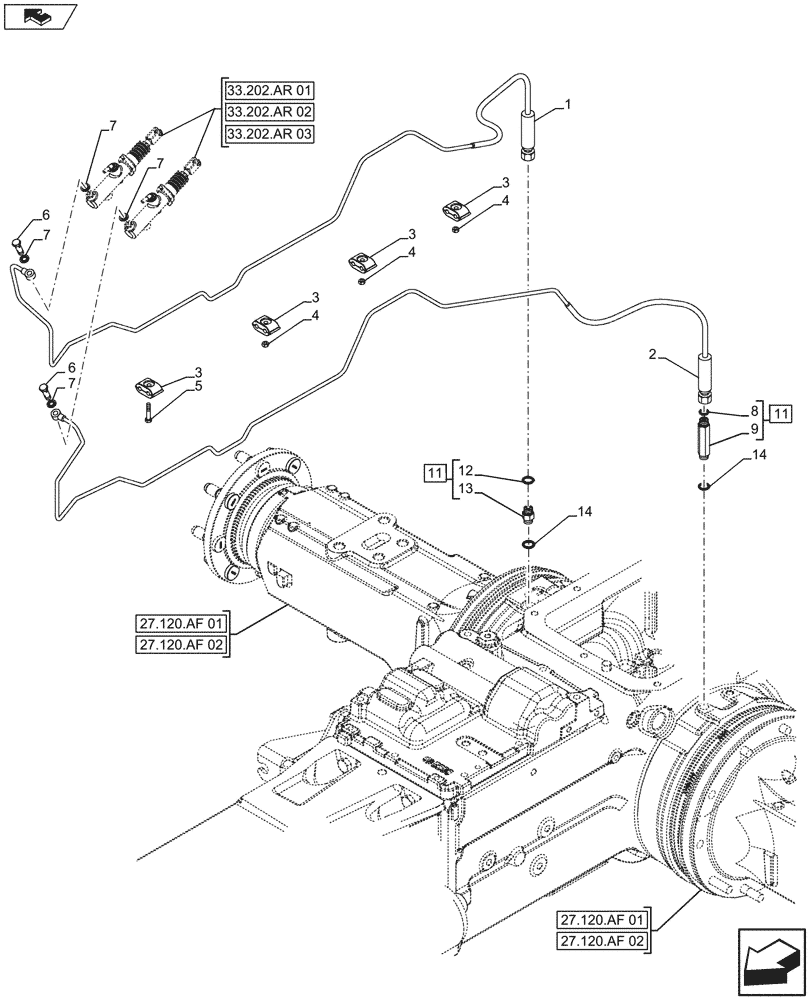

Запчасти Case IH FARMALL 105U (33.202.AP) - STD + VAR - 743933 - BRAKE, HYDRAULIC LINE (33) - BRAKES & CONTROLS

1

84562749

BRAKE LINE

Rear Brake, RH

1шт.

2

84562833

PIPE

Rear Brake, LH

1шт.

3

87738904

CLAMP BRACKET

4шт.

4

15896421

NUT,M5, Cl 10

3шт.

5

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

1шт.

6

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

7

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

4шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

10

84533393

FITTING

ASSY, Incl 8, 9

1шт.

11

47131549

FITTING,M12 x 1.5

ASSY, Incl 12, 13

1шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

14

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.
