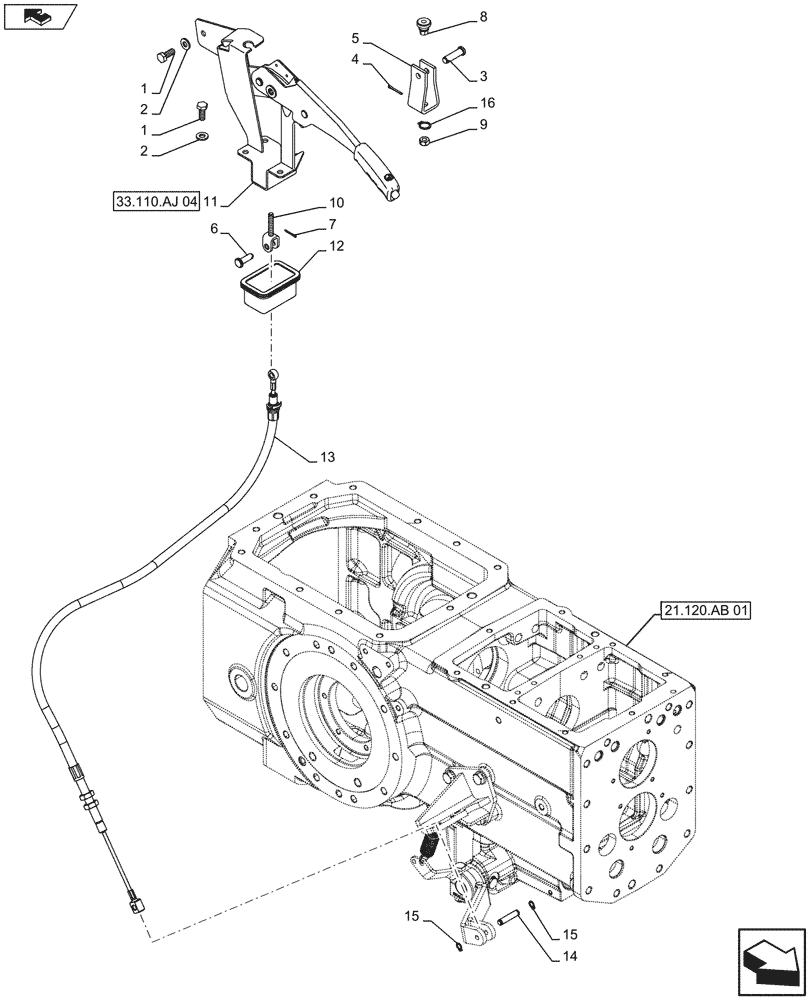

Запчасти Case IH FARMALL 105U (33.110.AJ[03]) - VAR - 339606 - PARKING BRAKE, ISO (33) - BRAKES & CONTROLS

1

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

2

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

3

83902558

PIN,3/8" x 1.312"

1шт.

4

81813880

COTTER PIN,3/32" x 3/4"

1шт.

5

84339996

CLEVIS

1шт.

6

86639013

CLEVIS PIN,8mm OD x 25mm L

1шт.

7

10734201

COTTER PIN,M2 x 12

1шт.

8

84386747

NUT,Hex, M8 x 1.25, Cl 8.8

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

10

84493735

FORK,M8 x 1.25

1шт.

11

84370246

CONTROL LEVER

ASSY

1шт.

See also Parking Brake Components in Figure 33.110.AJ 04

1шт.

12

84335589

PLUG

1шт.

13

84370241

THROTTLE CONTROL

1шт.

14

47134179

PIN,8mm OD x 38mm L

1шт.

15

11065676

SNAP RING,M8, Ext

2шт.

16

11066276

SNAP RING,M14, Ext

1шт.
