Запчасти Case IH FARMALL 105U (31.116.AL[02]) - VAR - 331729 - PTO 540/540E/1000 RPM, SHAFT & GEAR, ISO (31) - IMPLEMENT POWER TAKE OFF

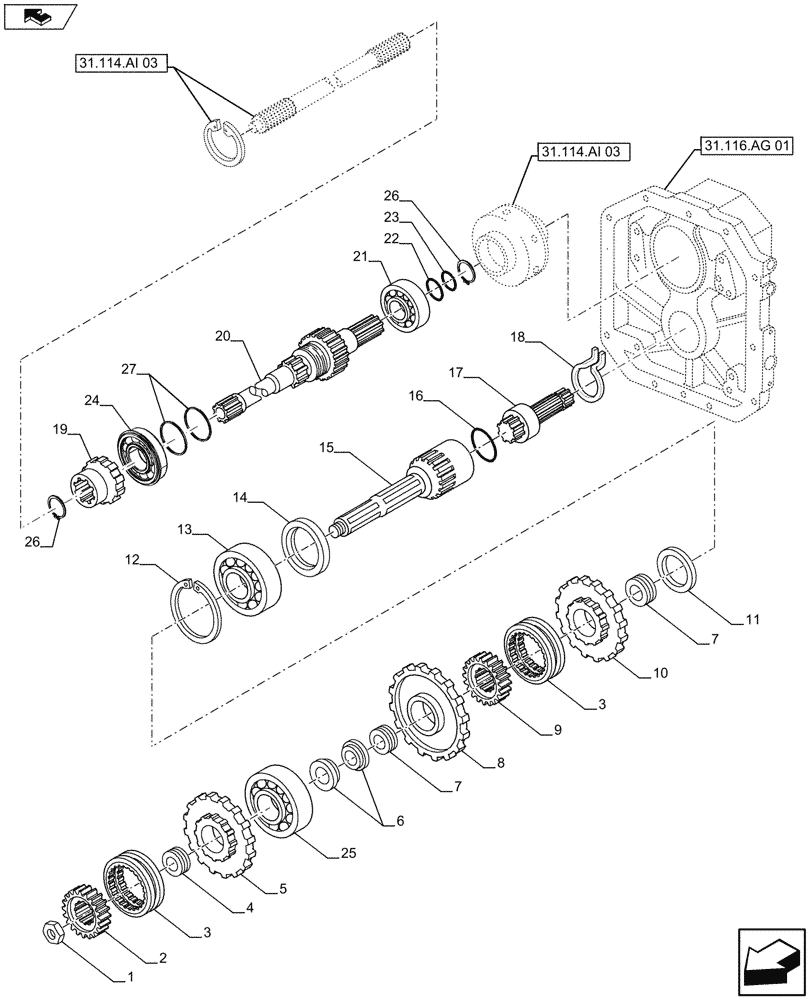

Схема запчастей Case IH FARMALL 105U - (31.116.AL[02]) - VAR - 331729 - PTO 540/540E/1000 RPM, SHAFT & GEAR, ISO (31) - IMPLEMENT POWER TAKE OFF
31.114.ai 03
26
11
24
2
5
26
18
9
3
27
10
7
15
8
20
17
22
6
1
13
16
19
12
23
25
21
3
14
4
home
7
31.116.ag 01
31.114.ai 03

Артикул

Название

Примечание

Количество

1

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

1шт.

2

5162794

GEAR,12T Internal / 24T External

1шт.

3

5129513

SYNCHRONIZER,24T

2шт.

4

5162787

RING RACE

1шт.

5

47124071

GEAR,54T

Driving Gear

1шт.

6

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

2шт.

7

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

8

84483099

GEAR,24T/ 61T

Driven PTO 540RPM

1шт.

9

5129512

SLEEVE,24T, 14T

1шт.

10

84483100

GEAR,52T/ 90T

Driven PTO 1000RPM

1шт.

11

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

12

11062476

SNAP RING,M90, Int

1шт.

13

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

14

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

1шт.

15

5198354

SHAFT

Driven PTO 540/540E/1000RPM

1шт.

16

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

17

47133081

PTO SHAFT

1шт.

18

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

19

47124068

GEAR,19T

1шт.

20

84483102

PTO SHAFT

1шт.

21

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

22

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

23

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

24

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

1шт.

25

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

26

11068876

SNAP RING,M40, Ext

2шт.

27

5175996

RETAINER

2шт.

Выбрано товаров: 27
