Запчасти Case IH FARMALL 105U (31.116.AG[02]) - VAR - 331819 - PTO 540/540E/1000 RPM, COVERS, W/ GROUND SPEED, ISO (31) - IMPLEMENT POWER TAKE OFF

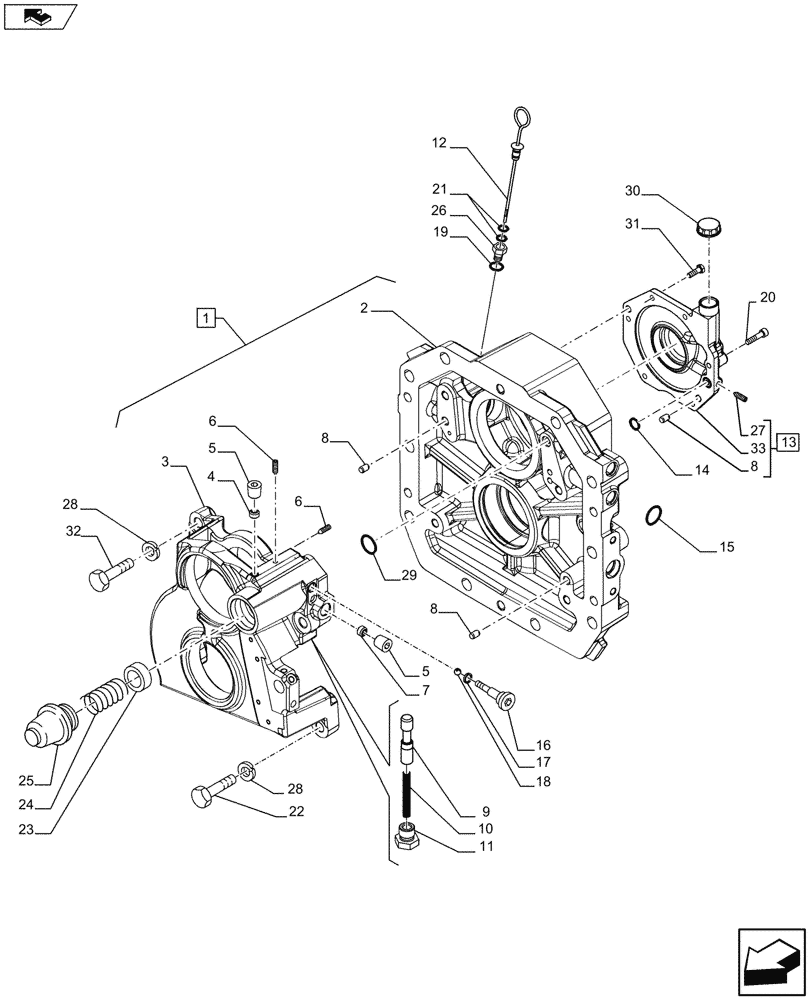

Схема запчастей Case IH FARMALL 105U - (31.116.AG[02]) - VAR - 331819 - PTO 540/540E/1000 RPM, COVERS, W/ GROUND SPEED, ISO (31) - IMPLEMENT POWER TAKE OFF
2
17
21
28
10
4
8
31
30
1
9
7
15
33
32
5
5
19
24
8
6
29
12
22
home
27
6
28
8
26
18
3
25
16
11
23
13
14
20

Артикул

Название

Примечание

Количество

1

84135262

SUPPORT

ASSY, Incl 2 - 8 (Qty 2), 9 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Casing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing Support, Incl in 1

1шт.

4

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

5

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

2шт.

6

10269150

PLUG,M6 x 1 x 60mm L

2шт.

7

5189186

RESTRICTOR VALVE,M8 x 1.25 x 5.3mm, Cl 8.8

1шт.

8

10839710

DOWEL,M10 x 15.00mm

6шт.

9

5194481

PISTON

1шт.

10

5166012

SPRING,Compression, 7.5mm OD x 57mm L

1шт.

11

5180551

PLUG

1шт.

12

5169720

DIPSTICK,207mm L

1шт.

13

84470321

COVER

ASSY, Incl 8 (Qty 4), 27, 33

1шт.

14

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

5183078

PLUG

1шт.

17

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

18

20419310

BALL

1шт.

19

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

20

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

21

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

22

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

23

5137480

PISTON,40mm OD

1шт.

24

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

25

5197632

CAP

1шт.

26

5169718

PLUG,M22 x 1.5

1шт.

27

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

28

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

29

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

30

5180946

FILLER CAP,M32 x 1.5

1шт.

31

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

32

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

33

84470320

COVER

1шт.

Выбрано товаров: 33
