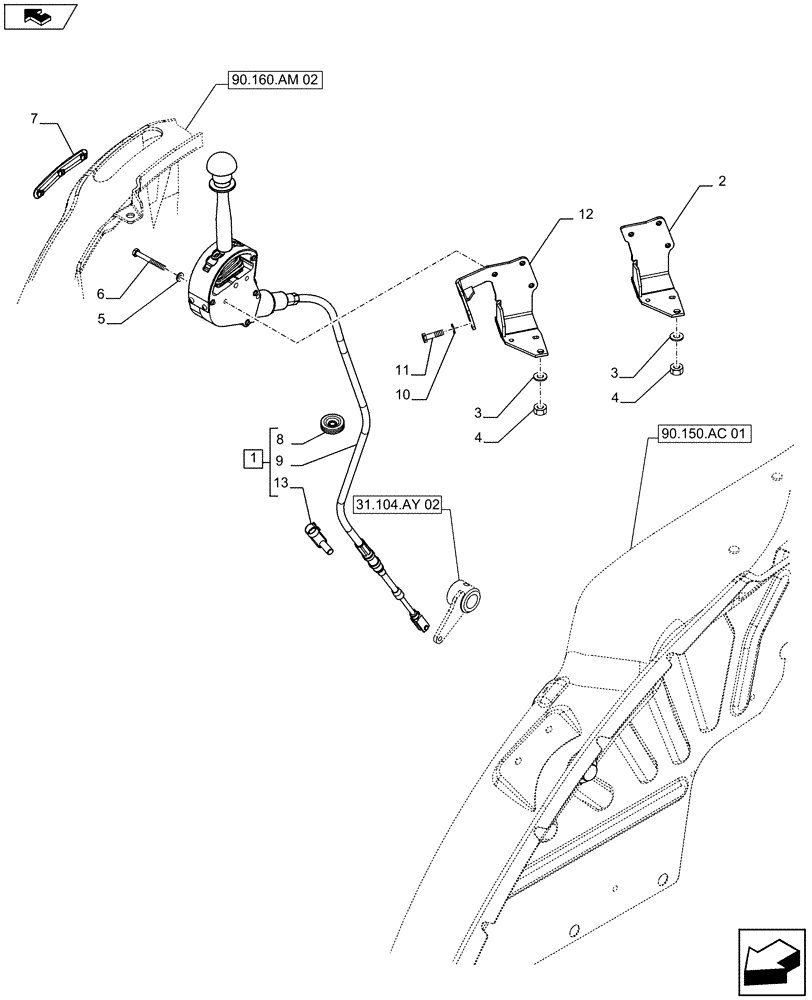

Запчасти Case IH FARMALL 105U (31.104.AY[05A]) - VAR - 331729, 331819 - PTO 540/540E/1000 RPM, CONTROLS, ISO - BEGIN YR 12-MAR-2013 (31) - IMPLEMENT POWER TAKE OFF

1

47421112

CONTROL

ASSY, Incl 8, 9, 13

1шт.

Right Hand Side Console

1шт.

2

84581275

BRACKET

, Serial Range: -C9038

1шт.

3

14496404

WASHER,M6 x 12 x 2 Thk

3шт.

4

10720124

NUT,Hex, M6 x 1

M6

3шт.

5

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

6

10903734

SCREW,M6 x 55mm L

M6 x 55

3шт.

7

47442779

PLUG

1шт.

8

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

9

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

10

87020309

WASHER

, Start Serial: D9038

1шт.

11

87342021

BOLT,Hex, M8 x 20mm, Cl 10.9

, Start Serial: D9038

1шт.

12

47527755

BRACKET

, Start Serial: D9038

1шт.

13

85813186

CLIP

1шт.
