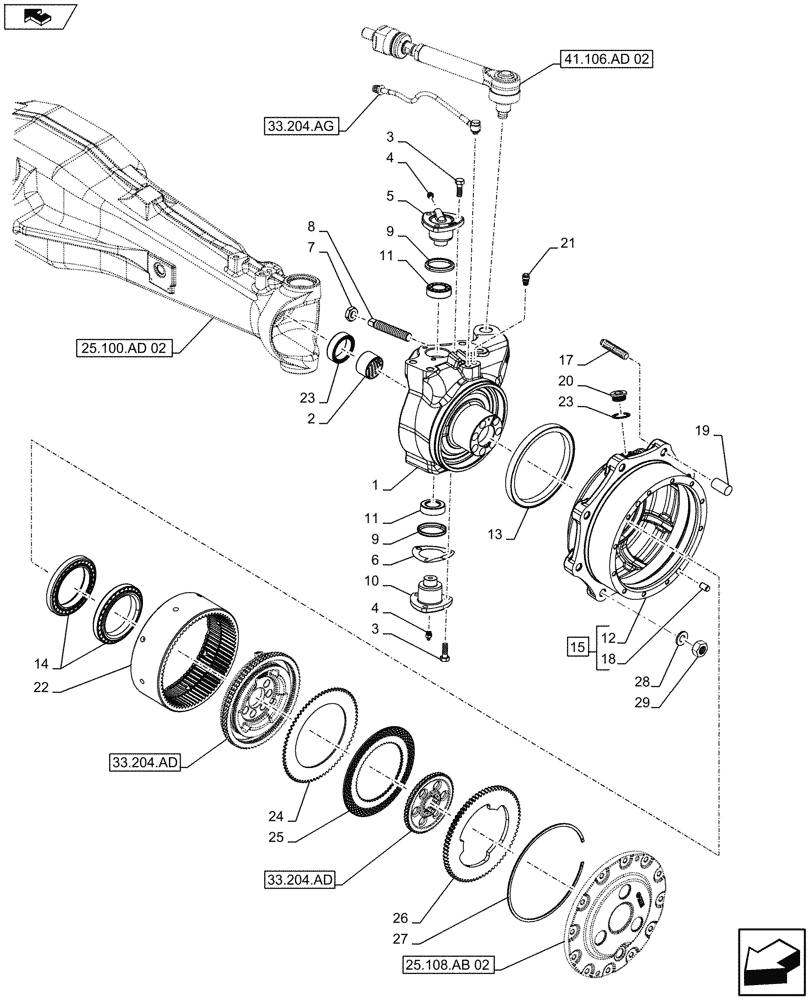

Запчасти Case IH FARMALL 105U (25.108.AN[03]) - VAR - 330415 - 4WD FRONT AXLE, STEERING KNUCKLE, HUB, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM

1

87381868

STUB AXLE/STEERING S

RH

1шт.

1

87381867

STUB AXLE/STEERING S

LH

1шт.

2

87529111

BUSHING,47.1mm ID x 51mm OD x 30mm L

2шт.

3

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

13407211

LUBE NIPPLE,M10 x 1

4шт.

5

87383399

PIN

Upper

2шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

6

5100791

SHIM,.20mm Thk

1шт.

6

5100792

SHIM,.25mm Thk

1шт.

6

5100793

SHIM,.30mm Thk

1шт.

7

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

8

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

4шт.

10

87383400

PIN

Lower

2шт.

11

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

4шт.

12

NSS

NOT SOLD SEPARAT

Hub housing, Incl in 15

2шт.

13

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

2шт.

14

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

15

84135225

HUB

ASSY, Incl 12, 18

2шт.

16

5142020

NUT,Hex, M75 x 2

2шт.

17

87618916

STUD

16шт.

18

4985063

DOWEL,12mm OD x 20mm L

8шт.

19

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

20

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

21

13413290

BREATHER

2шт.

22

87383413

RING GEAR

2шт.

23

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

2шт.

24

87383416

BRAKE DISC,150 mm ID x 221 mm OD x 3 mm Thk, 72T

2шт.

25

87383417

BRAKE DISC,135.38mm ID x 170mm OD x 4.5mm Thk, 54T

2шт.

26

87383418

BRAKE DISC,120mm ID x 221mm OD x 11.8mm Thk

2шт.

27

87383414

SNAP RING

2шт.

28

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

29

12164121

NUT,M16 x 1.5, Cl 10

16шт.
