Запчасти Case IH FARMALL 105U (25.108.AA[06]) - VAR - 330415 - 4WD FRONT AXLE, HALF SHAFT, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM

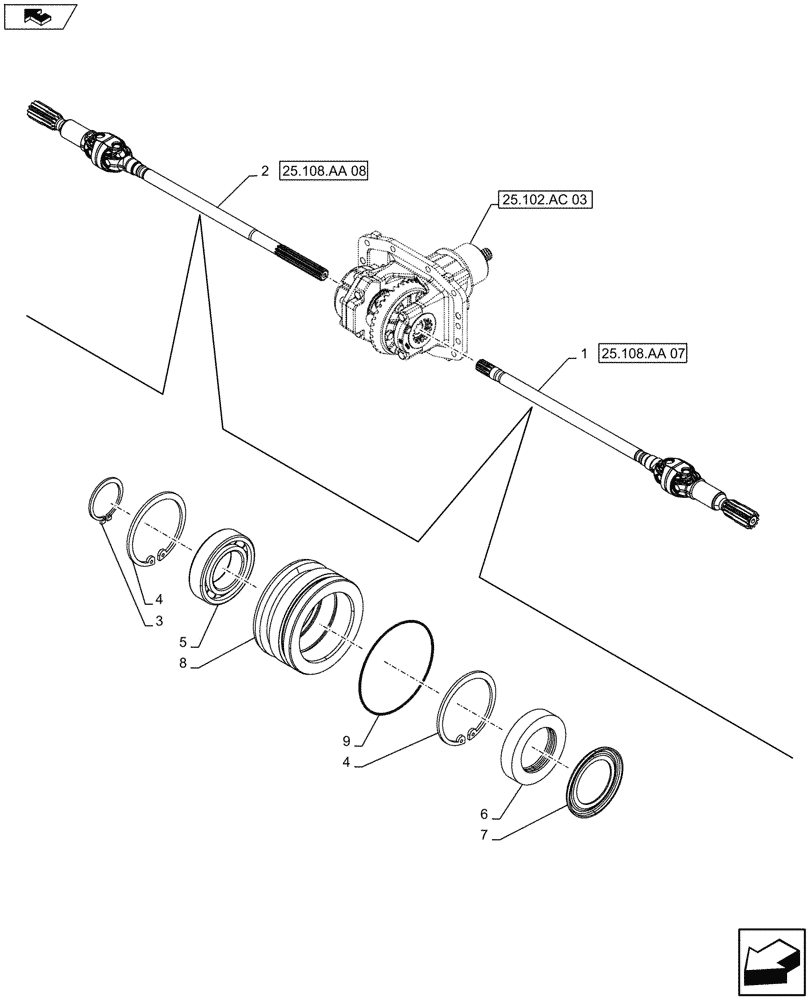

Схема запчастей Case IH FARMALL 105U - (25.108.AA[06]) - VAR - 330415 - 4WD FRONT AXLE, HALF SHAFT, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM
25.108.aa 07
4
8
1
3
2
4
7
9
home
6
5
25.102.ac 03
25.108.aa 08

Артикул

Название

Примечание

Количество

1

87374575

HALF SHAFT,925.5mm L

LH

1шт.

2

87571799

HALF SHAFT,979.5mm L

RH

1шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

8

87371275

BUSHING,55mm ID x 75mm OD x 38mm L

2шт.

9

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

Выбрано товаров: 9
