(25.108.AA[05]) - VAR - 330308 - 4WD FRONT AXLE, HALF SHAFT, RH, COMPONENTS, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO

Запчасти Case IH FARMALL 105U (25.108.AA[05]) - VAR - 330308 - 4WD FRONT AXLE, HALF SHAFT, RH, COMPONENTS, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM

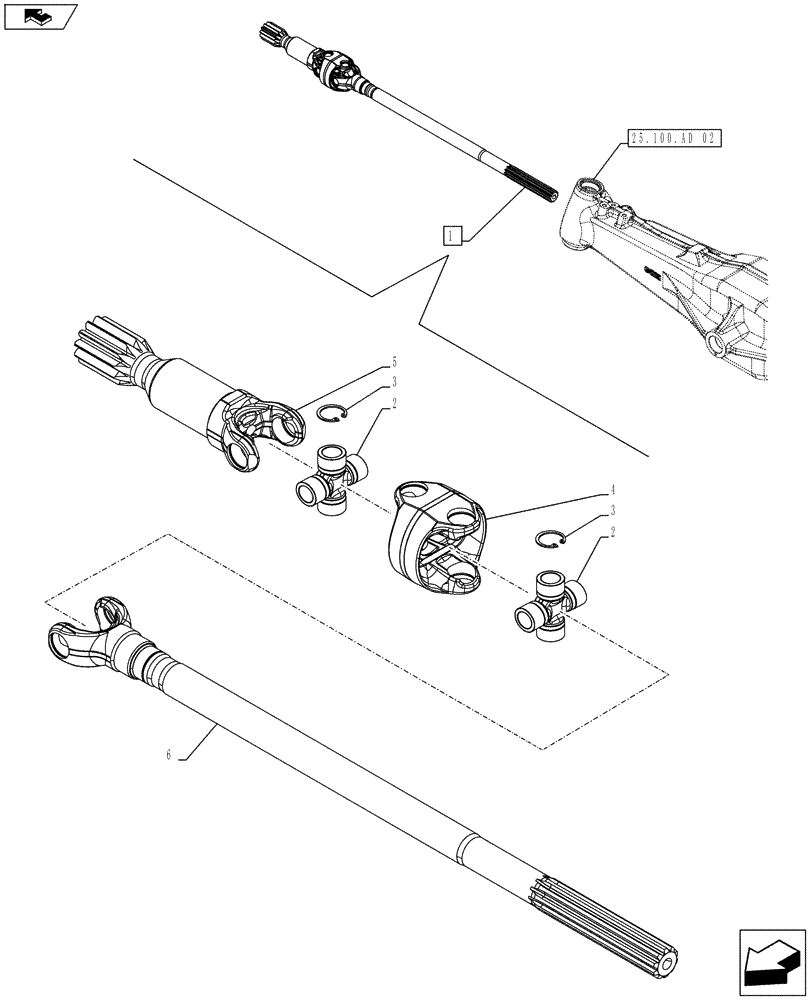

Схема запчастей Case IH FARMALL 105U - (25.108.AA[05]) - VAR - 330308 - 4WD FRONT AXLE, HALF SHAFT, RH, COMPONENTS, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM
25.100.ad 02
2
5
6
3
1
2
4
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87669495

ARTICULATED SHAFT

RH, ASSY, Incl 2 - 6

1шт.

2

5191024

SPIDER

2шт.

3

5191025

LOCKING RING

8шт.

4

5191027

YOKE

1шт.

5

87523100

YOKE,210mm L

1шт.

6

87669506

HALF SHAFT,695.5mm L

RH, Inner

1шт.

Выбрано товаров: 6
