(25.108.AA[02]) - STD + VAR - 390399 - 4WD FRONT AXLE, HALF SHAFT, COMPONENTS, W/ LIMITED SLIP DIFFERENTIAL

Запчасти Case IH FARMALL 105U (25.108.AA[02]) - STD + VAR - 390399 - 4WD FRONT AXLE, HALF SHAFT, COMPONENTS, W/ LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM

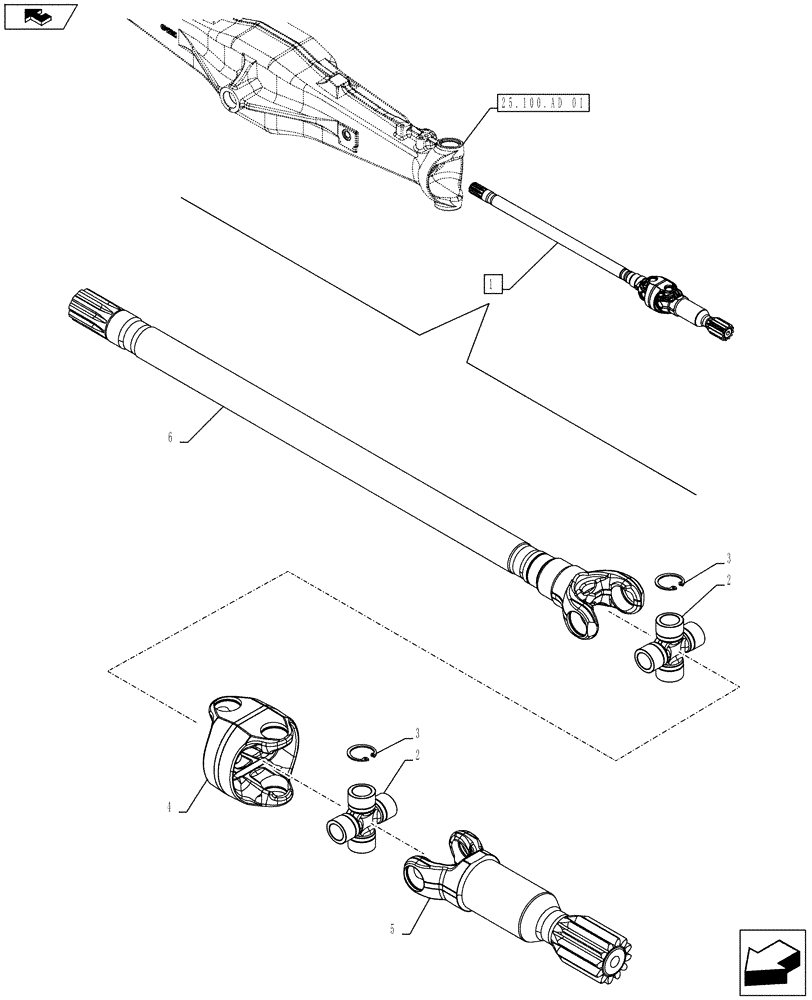

Схема запчастей Case IH FARMALL 105U - (25.108.AA[02]) - STD + VAR - 390399 - 4WD FRONT AXLE, HALF SHAFT, COMPONENTS, W/ LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM
home
6
4
2
1
3
5
3
2
25.100.ad 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87374569

ARTICULATED SHAFT,962.5mm L

RH, ASSY, Incl 2 - 6

1шт.

1

87374566

HALF SHAFT,908.5mm L

LH, ASSY, Incl 2 - 6

1шт.

2

5191024

SPIDER

4шт.

3

5191025

LOCKING RING

16шт.

4

5191027

YOKE

2шт.

5

87523100

YOKE,210mm L

2шт.

6

87523110

YOKE,695.5mm L

RH, Inner

1шт.

6

87523101

YOKE,641.5mm L

LH, Inner

1шт.

Выбрано товаров: 8
