Запчасти Case IH FARMALL 105U (25.102.AC[03]) - VAR - 330308, 330415 - 4WD FRONT AXLE, DIFFERENTIAL CARRIER, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM

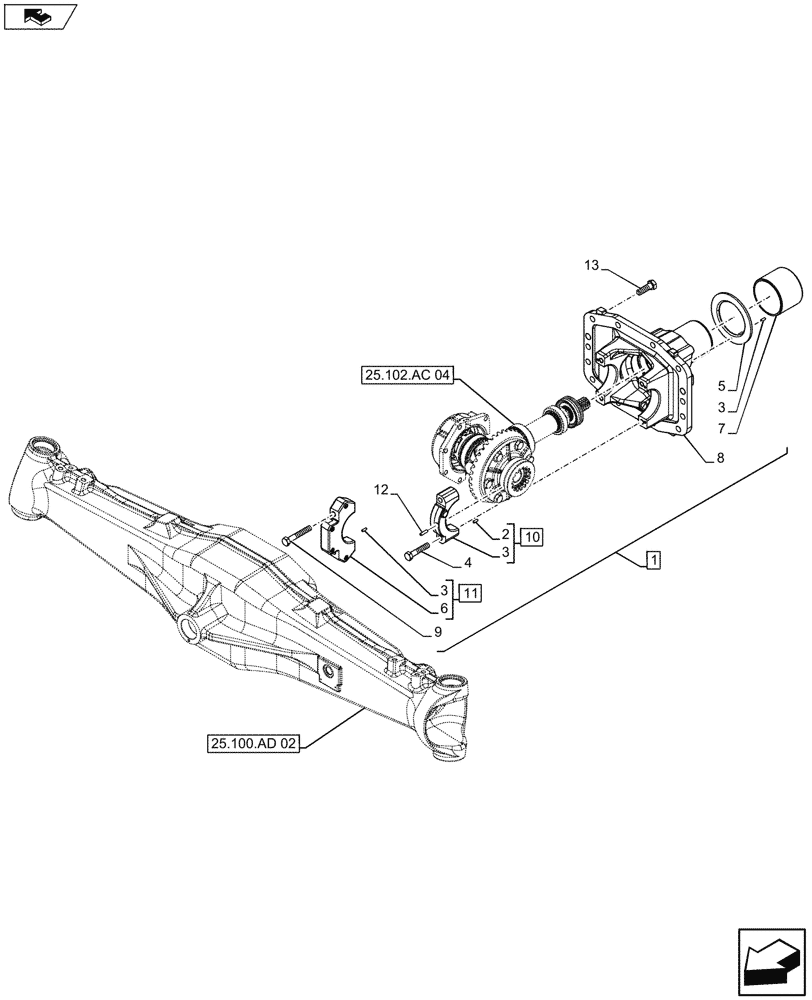

Схема запчастей Case IH FARMALL 105U - (25.102.AC[03]) - VAR - 330308, 330415 - 4WD FRONT AXLE, DIFFERENTIAL CARRIER, W/ HYDRAULIC DIFFERENTIAL LOCK, ISO (25) - FRONT AXLE SYSTEM
11
3
12
5
2
9
25.102.ac 04
13
3
1
8
6
home
7
3
home
25.100.ad 02
10
4

Артикул

Название

Примечание

Количество

1

84496243

SUPPORT

ASSY, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 10

1шт.

3

4966244

PIN,5mm OD x 15mm L

5шт.

4

14275531

SCREW,M12 x 1.25 x 80mm, Cl 10.9

2шт.

5

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 11

1шт.

7

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

8

NSS

NOT SOLD SEPARAT

Differential Wheelwork, Incl in 1

1шт.

9

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

2шт.

10

87383437

SUPPORT

ASSY, Incl 2, 3 (Qty 2)

1шт.

11

5167818

SUPPORT

ASSY, Incl 3 (Qty 2), 6

1шт.

12

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

13

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

12шт.

Выбрано товаров: 13
