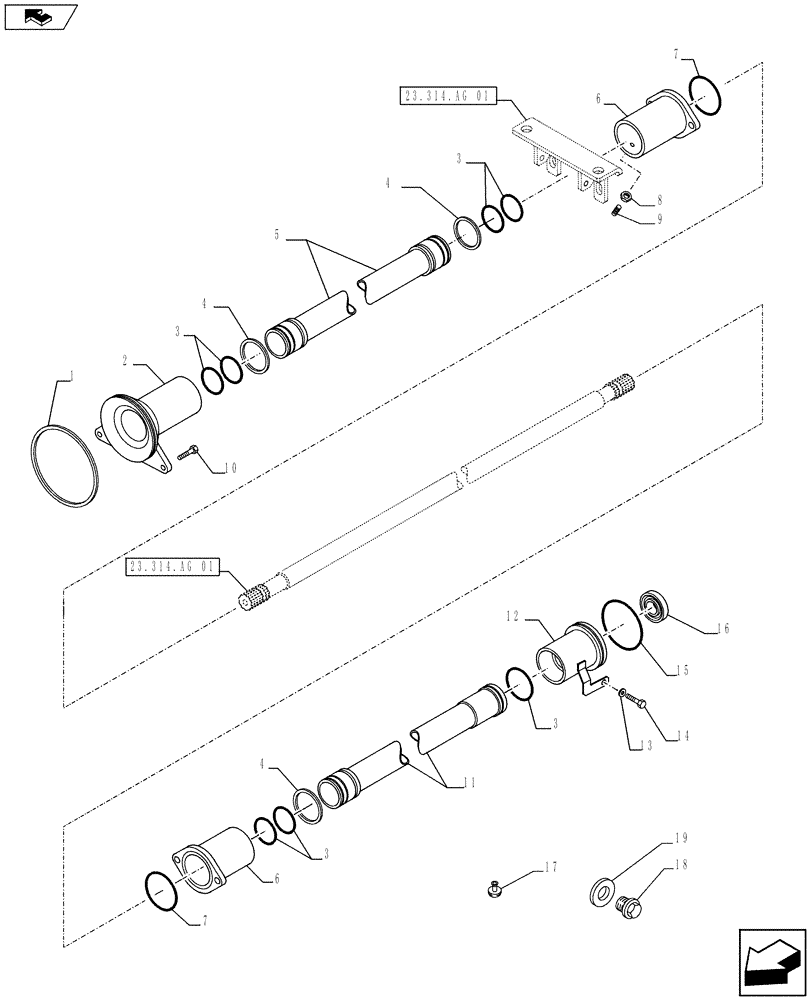

Запчасти Case IH FARMALL 105U (23.314.AG[02]) - VAR - 330448 - DRIVE SHAFT (W/ WATERPROOF TRANSMISSION), ISO (23) - FOUR WHEEL DRIVE SYSTEM

1

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

2

47124556

SLEEVE,57mm ID x 66mm OD x 104.0mm L

1шт.

3

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

7шт.

4

11069676

SNAP RING,M56, Ext

3шт.

5

87619124

SHIELD

1шт.

6

87534292

FLANGE

2шт.

7

14460480

O-RING,2.612" ID x 2.818" OD x .103"

2шт.

8

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

9

13809631

SET SCREW,Hex Soc, M10 x 20mm, Flat Pt

2шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

87619121

SHIELD

1шт.

12

47129888

BUSHING

1шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

15

14460980

O-RING,75.87mm ID x 2.62" Width

1шт.

16

5180916

GASKET,35mm ID x 52mm OD x 7mm Thk

1шт.

17

5145574

PLUG,M7 X 12.5mm

1шт.

18

5198705

PLUG

1шт.

19

10261760

COPPER WASHER,20mm ID x 28mm OD x 1.5mm Thk

4шт.
