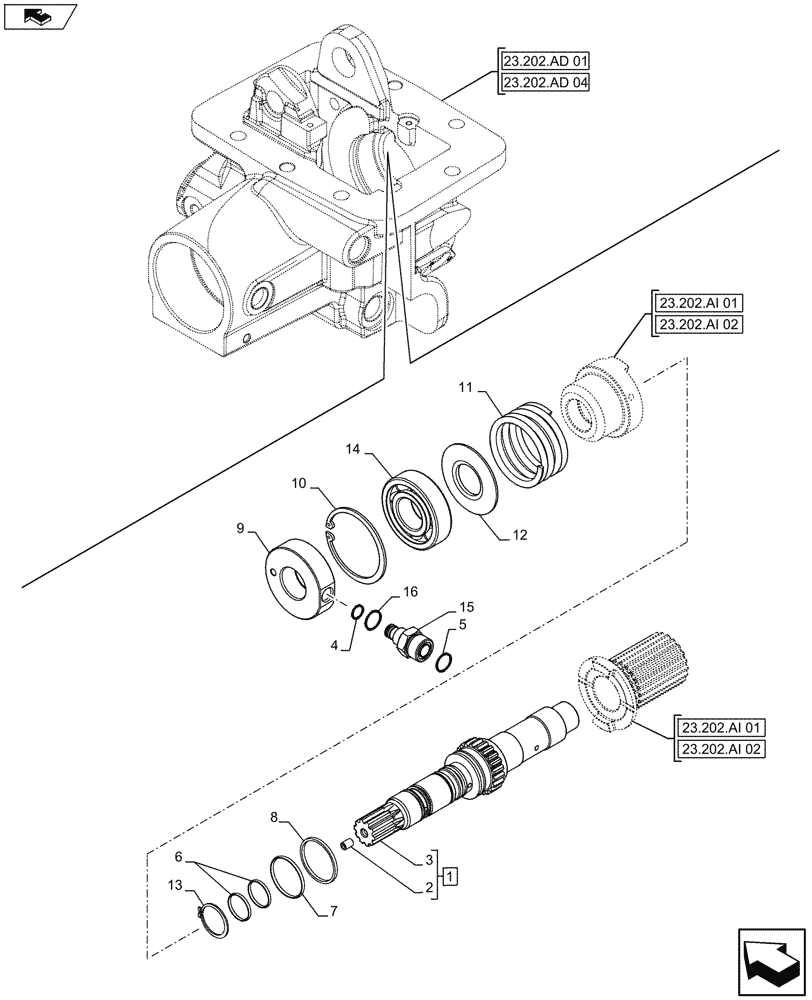

Запчасти Case IH FARMALL 105U (23.202.AD[02]) - STD + VAR - 743931, 743932 - 4WD, ELECTROHYDRAULIC ENGAGEMENT, SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

1

47130811

SHAFT

ASSY, Incl 2, 3

1шт.

2

13789720

SET SCREW,Hex Skt, M8 x 12mm, Flat Pt

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

4

14453080

O-RING,0.426" ID x 0.07"

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

5195944

SEALING RING,31.8mm ID x 35mm OD x 2.5mm Thk

2шт.

7

5160580

GASKET,27.55mm ID x 35.12mm OD x 3.2mm Thk

1шт.

8

5152665

SEAL,42.55mm ID x 50.12mm OD x 3.2mm Thk

1шт.

9

5197419

MANIFOLD

1шт.

10

11061976

SNAP RING,M80, Int

1шт.

11

87704329

SPRING,77mm OD x 86mm Free Length

1шт.

12

5176902

RING

1шт.

13

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

14

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

15

84487882

HYD CONNECTOR

O-ring not Incl

1шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

1шт.
