Запчасти Case IH FARMALL 105U (21.148.AL[04]) - VAR - 332279 - TRANSMISSION (24X24), DRIVEN SHAFT (1ST/2ND) (21) - TRANSMISSION

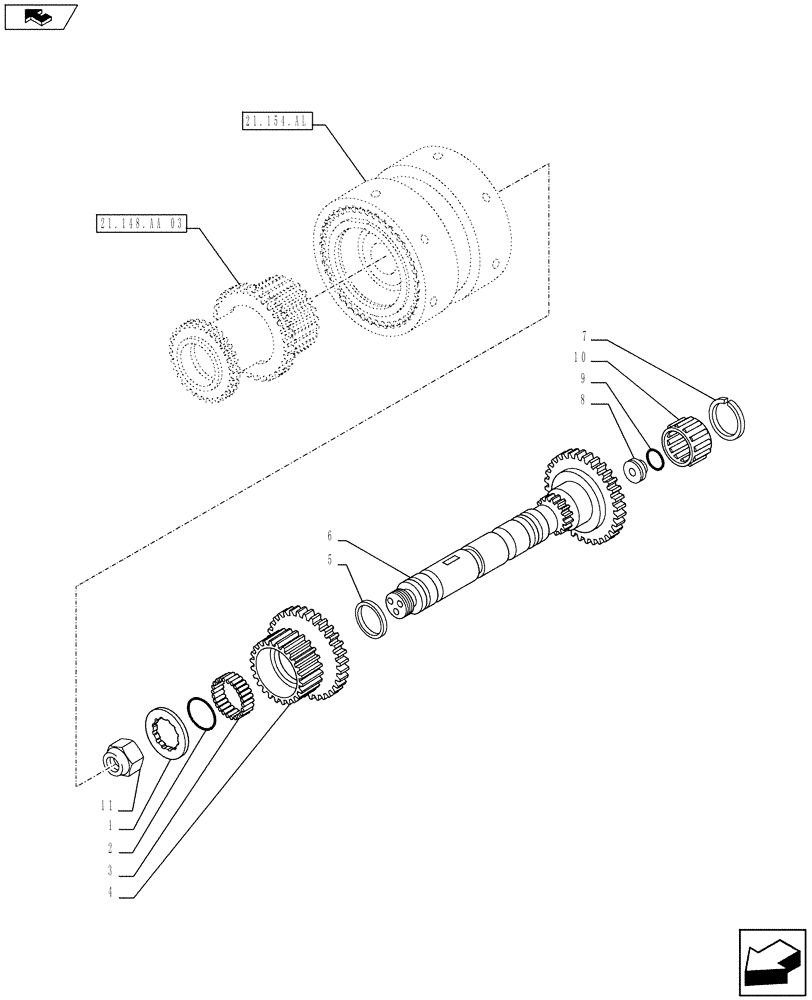

Схема запчастей Case IH FARMALL 105U - (21.148.AL[04]) - VAR - 332279 - TRANSMISSION (24X24), DRIVEN SHAFT (1ST/2ND) (21) - TRANSMISSION
21.154.al
2
3
7
6
9
1
11
5
4
8
10
21.148.aa 03
home

Артикул

Название

Примечание

Количество

1

5192138

THRUST WASHER

1шт.

2

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

3

5124054

ROLLER CAGE BEARING,55mm ID x 63mm OD x 25mm W

1шт.

4

5197893

GEAR

1шт.

5

5194902

RING,33.9mm ID x 40mm OD x 2.43mm Thk

1шт.

6

5195436

DRIVEN SHAFT

1шт.

7

5141500

RING,28.2mm ID x 34.5mm OD x 1mm Thk

1шт.

8

5192150

SEAT/SLOT

1шт.

9

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

10

5107311

NEEDLE BEARING,28mm ID x 35mm OD x 27mm W

1шт.

11

5137678

RING NUT

1шт.

Выбрано товаров: 11
