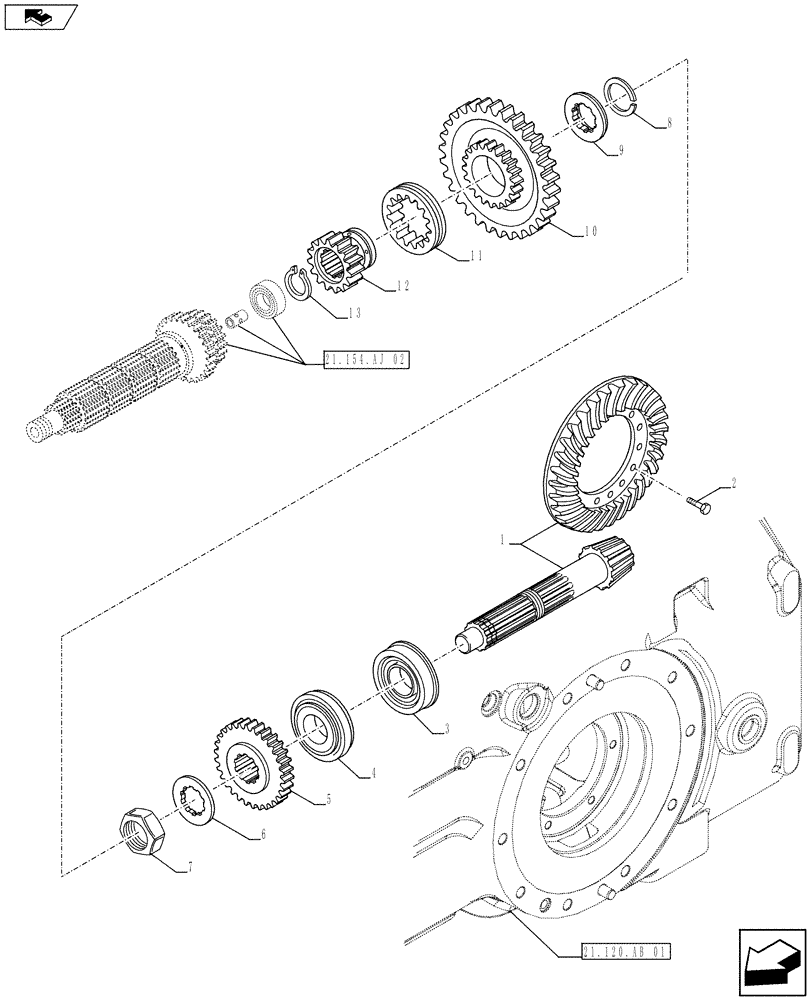

Запчасти Case IH FARMALL 105U (21.148.AC[04]) - VAR - 743507 - BEVEL GEAR, ISO (30KPH) (21) - TRANSMISSION

1

87385870

BEVEL GEAR

1шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

1шт.

3

47124626

TAPERED BEARING,45mm ID x 106mm OD x 38.25mm W

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

87388608

DRIVEN GEAR

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

1шт.

9

5160748

SPACER

1шт.

10

5160747

GEAR

1шт.

11

5125010

SLEEVE,23T

1шт.

12

5160749

SPLINED COUPLING,10T Internal / 23T External

1шт.

13

11068976

SNAP RING,M42, Ext

1шт.
