Запчасти Case IH FARMALL 105U (21.148.AA[03]) - VAR - 332279 - TRANSMISSION (24X24), SYNCHRONIZER (1ST/2ND) (21) - TRANSMISSION

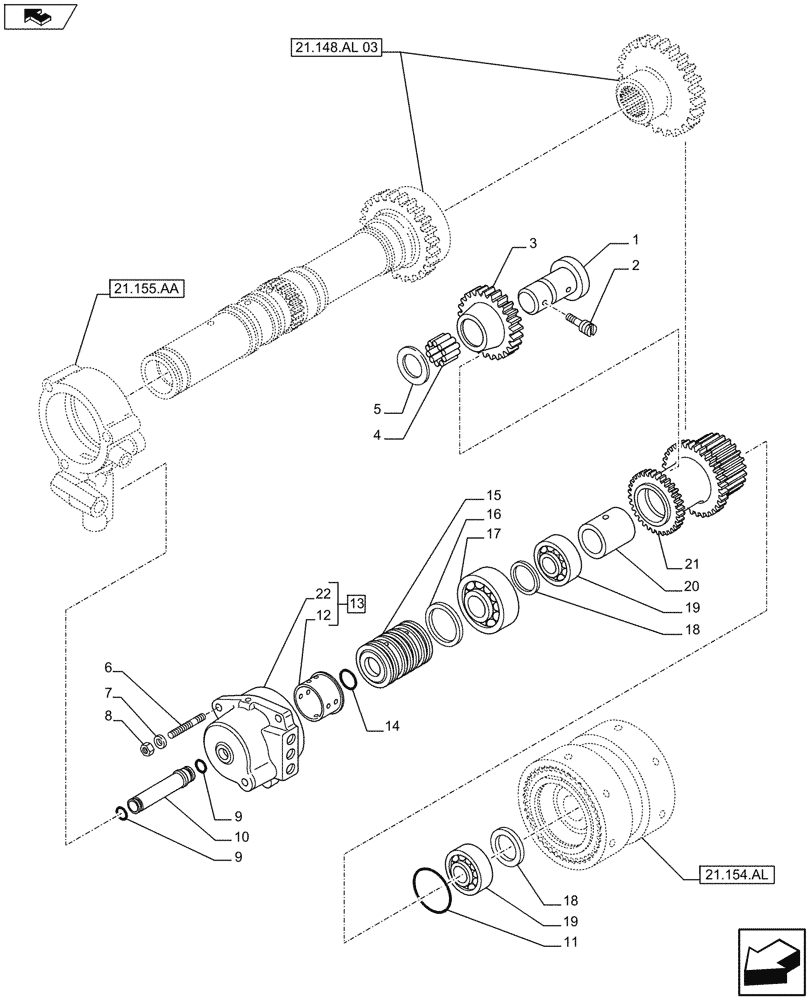

Схема запчастей Case IH FARMALL 105U - (21.148.AA[03]) - VAR - 332279 - TRANSMISSION (24X24), SYNCHRONIZER (1ST/2ND) (21) - TRANSMISSION
15
19
18
11
22
7
1
21.148.al 03
14
4
21
13
21.154.al
8
home
2
6
9
5
10
12
3
17
18
9
16
home
20
21.155.aa
19

Артикул

Название

Примечание

Количество

1

5137525

PIN

1шт.

2

84424141

THREADED ROD

1шт.

3

5137524

IDLER GEAR

1шт.

4

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

1шт.

5

5117560

THRUST WASHER,32.01mm ID x 48mm OD x 4.5mm Thk

1шт.

6

13517210

STUD

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

9

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

10

5182025

FITTING

1шт.

11

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

12

5194900

BUSHING,59.98mm ID x 70mm OD x 48.5mm L

1шт.

13

5194897

MANIFOLD

ASSY, Incl 12, 22

1шт.

14

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

15

5194907

MANIFOLD

1шт.

16

5175988

SEALING RING,55.6mm ID x 60mm OD x 2.42mm Thk

4шт.

17

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

18

5137538

THRUST WASHER

2шт.

19

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

20

5192269

RING

1шт.

21

5197896

GEAR

Driven on LO and Reverse

1шт.

22

NSS

NOT SOLD SEPARAT

Manifold, Incl in 13

1шт.

Выбрано товаров: 22
