Запчасти Case IH FARMALL 105U (21.134.AM[03]) - VAR - 332279 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

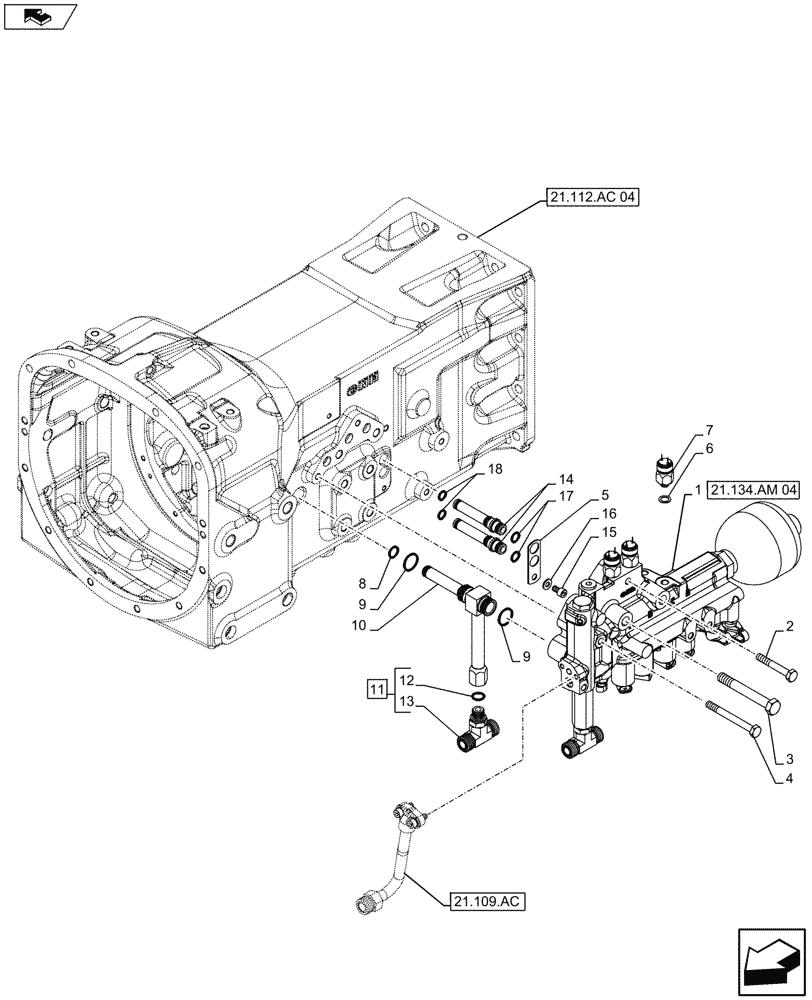

Схема запчастей Case IH FARMALL 105U - (21.134.AM[03]) - VAR - 332279 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION
1
14
11
10
18
8
6
9
17
13
4
2
21.134.am 04
21.109.ac
16
5
home
home
3
21.112.ac 04
15
12
9
7

Артикул

Название

Примечание

Количество

1

84485128

HYDRAULIC VALVE

ASSY

1шт.

See also Valve Components in Figure 21.134.AM 04

1шт.

2

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

3

15877021

BOLT,Hex, M14 x 1.5 x 110mm, Cl 8.8

2шт.

4

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

1шт.

5

5182050

FLANGE

1шт.

6

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

1шт.

7

87494633

PRESSURE SWITCH

1шт.

8

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

9

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

10

87538491

HYD CONNECTOR

1шт.

11

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

ASSY, Incl 12, 13

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

14

5182049

PIPE

Delivery

2шт.

15

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

16

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

17

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

4шт.

18

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

Выбрано товаров: 19
