(21.112.AC[04]) - VAR - 332279 - TRANSMISSION HOUSING (24X24), POWERSHUTTLE

Запчасти Case IH FARMALL 105U (21.112.AC[04]) - VAR - 332279 - TRANSMISSION HOUSING (24X24), POWERSHUTTLE (21) - TRANSMISSION

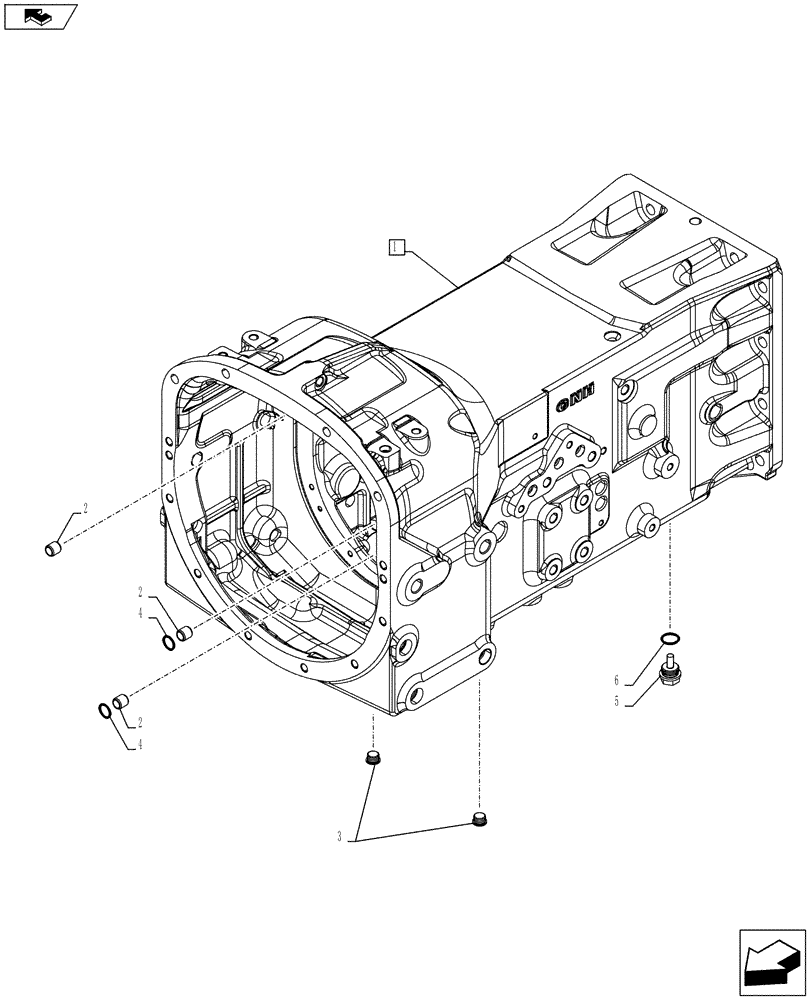

Схема запчастей Case IH FARMALL 105U - (21.112.AC[04]) - VAR - 332279 - TRANSMISSION HOUSING (24X24), POWERSHUTTLE (21) - TRANSMISSION
home
5
4
2
6
4
2
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84475662

HOUSING

ASSY, Incl 2, 3

1шт.

2

5178778

SPACER,11mm ID x 15mm OD x 15mm L

3шт.

3

590353

PLUG,15mm OD x 10mm High, Plastic

2шт.

4

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

5

87584549

PLUG

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

Выбрано товаров: 6
