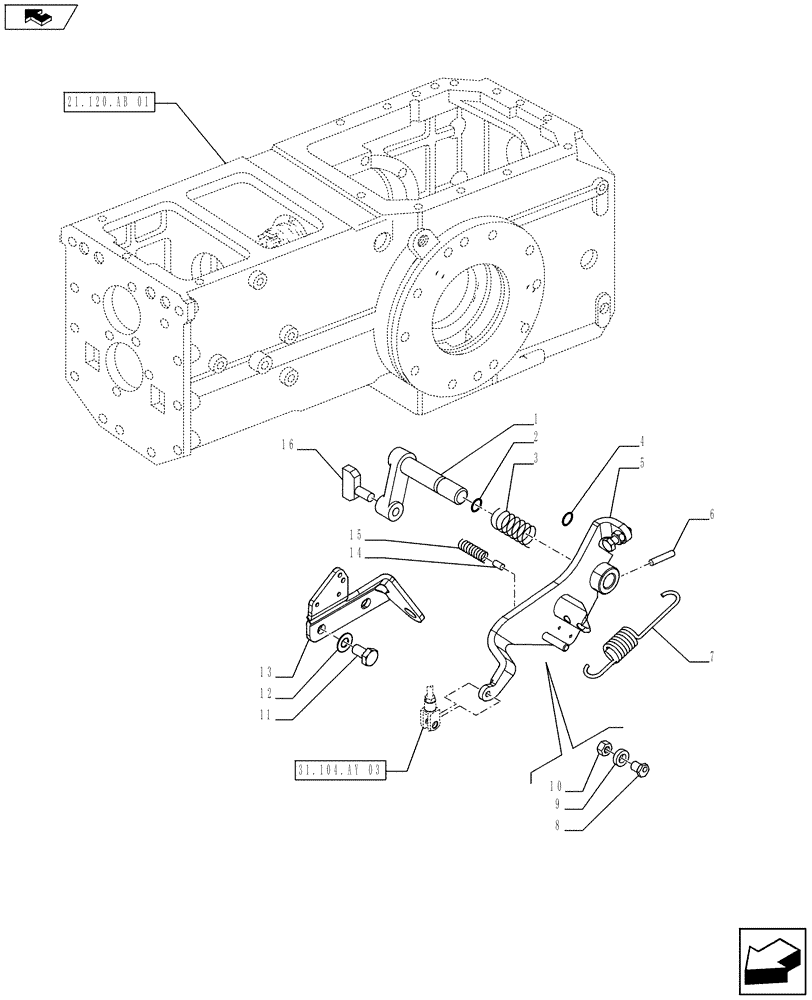

Запчасти Case IH FARMALL 105U (18.100.AF[03]) - VAR - 331819 - CLUTCH CONTROL LEVER - PTO 540-540E RPM W/ GROUND SPEED, ISO (18) - CLUTCH

1

47124617

LEVER

1шт.

2

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

3

580548

SPRING

1шт.

4

47124618

CIRCLIP

1шт.

5

84485722

CONTROL LEVER

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

7

5129033

SPRING,Extension, 23mm OD x 130mm L

1шт.

8

5166308

SPACER,8mm ID x 14mm OD x 16.5mm L

1шт.

9

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

10

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

11

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

12

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

2шт.

13

84485743

BRACKET

1шт.

14

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

15

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

16

4984096

CONTROL LEVER,10mm OD x 40mm L

1шт.
