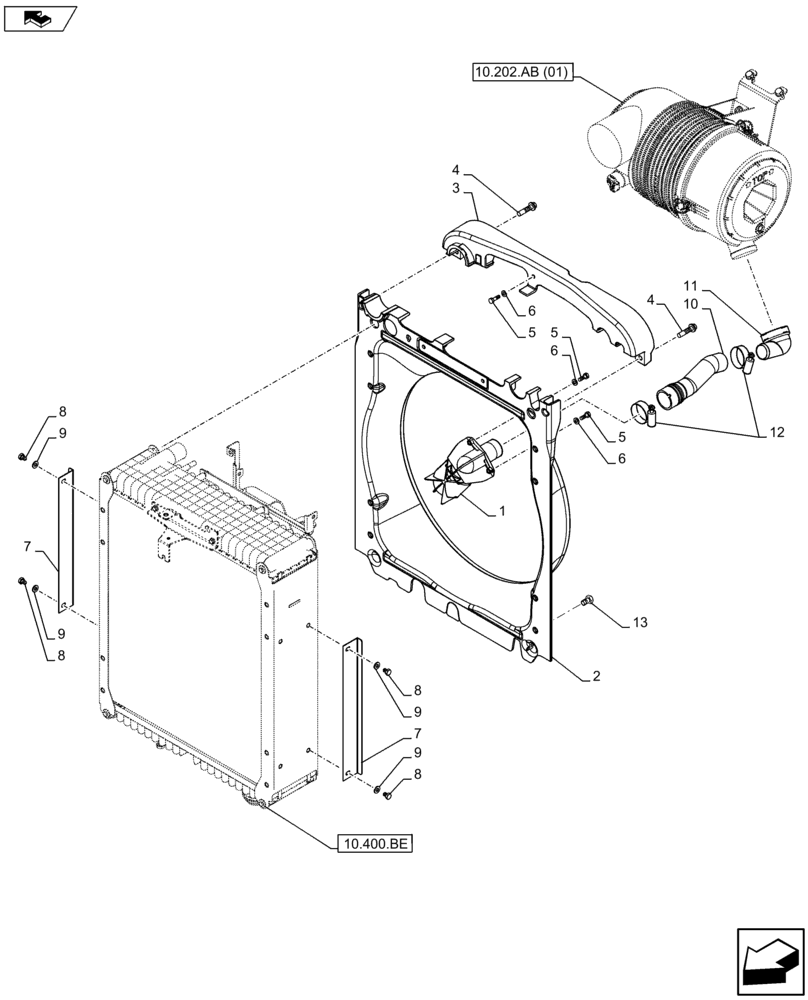

Запчасти Case IH FARMALL 105U (10.400.BF[01]) - VAR - 330200, 390200 - RADIATOR FAN SHROUD (10) - ENGINE

1

47402293

DUST VALVE

1шт.

2

84279593

SHROUD

1шт.

3

84425897

SEAL

1шт.

4

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

3шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

7

84405336

COVER

2шт.

8

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

9

14496524

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

10

47379760

HOSE,30.5mm ID x 223mm L

1шт.

11

84417233

ELBOW

1шт.

12

82039347

HOSE CLAMP,35mm - 50mm, Worm Gear

2шт.

13

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.
