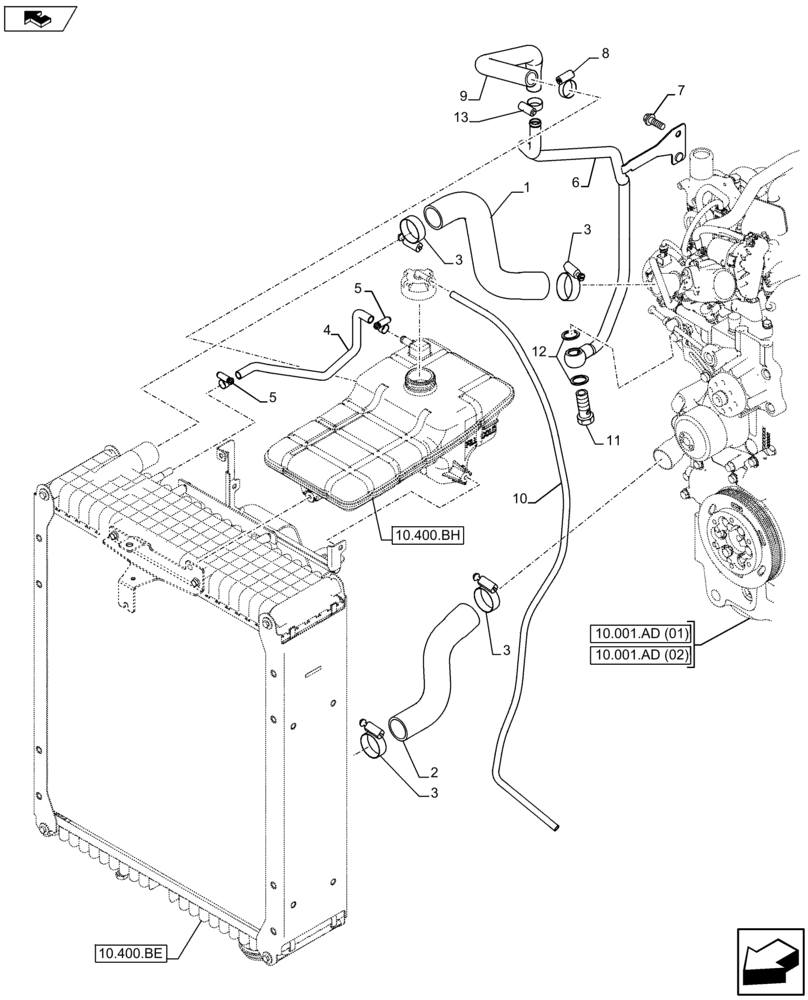

Запчасти Case IH FARMALL 105U (10.400.AY) - VAR - 330200, 390200 - RADIATOR & HOSE (10) - ENGINE

1

87735931

RADIATOR HOSE

Hot

1шт.

2

84235120

RADIATOR HOSE,38mm ID

Cold

1шт.

3

47625839

COLLAR CLAMP,30/50mm ID 12W

4шт.

4

84426316

FLEXIBLE HOSE,9mm ID

1шт.

5

87313783

CLAMP,10mm - 16mm, Worm Gear

2шт.

6

84333477

TUBE

Hot, Return

1шт.

7

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

8

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

1шт.

9

84309966

RETURN PIPE

Flexible

1шт.

10

84234112

FLEXIBLE HOSE,1300mm L

1шт.

11

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

12

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

13

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

1шт.
