(90.151.AK) - VAR - 334144, 335683 - REAR VIEW MIRROR, INSIDE

Запчасти Case IH FARMALL 105U (90.151.AK) - VAR - 334144, 335683 - REAR VIEW MIRROR, INSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

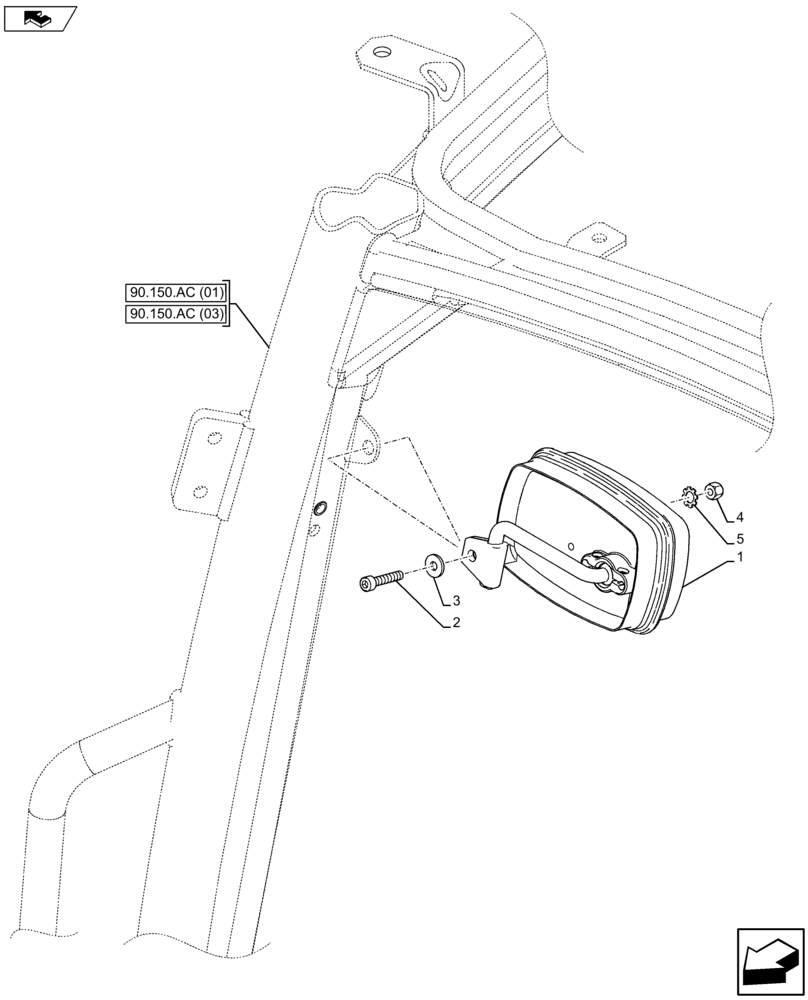

Схема запчастей Case IH FARMALL 105U - (90.151.AK) - VAR - 334144, 335683 - REAR VIEW MIRROR, INSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
home
home
1
90.150.ac (01)
90.150.ac (03)
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87665407

REAR VIEW MIRROR

1шт.

2

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

1шт.

3

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

4

12574211

NUT,M6 x 1, Cl 8

1шт.

5

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.
