(90.151.AC[01]) - VAR - 332865 - PASSENGER SEAT

Запчасти Case IH FARMALL 105U (90.151.AC[01]) - VAR - 332865 - PASSENGER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

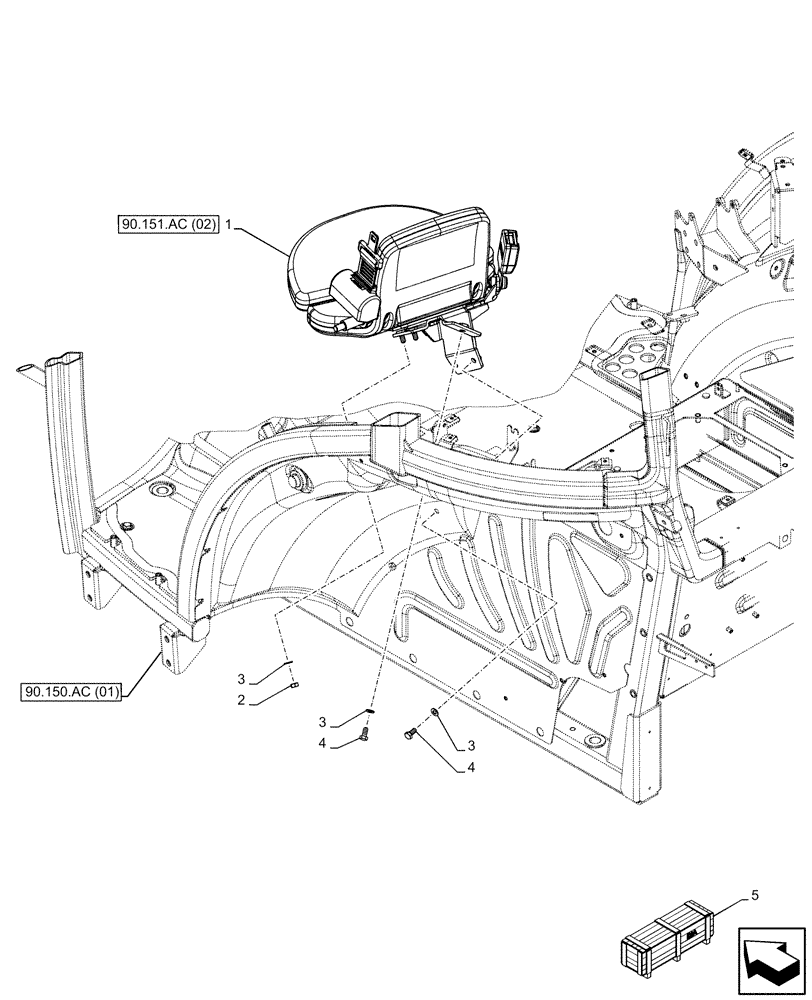

Схема запчастей Case IH FARMALL 105U - (90.151.AC[01]) - VAR - 332865 - PASSENGER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
1
2
3
4
4
3
3
5
90.151.ac (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47564639

INSTRUCTIONAL SEAT

SEAT ASSY, Fabric, Wheat

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

718829080

DIA KIT, TRACTOR

Instruction Seat with Seat Belt, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
