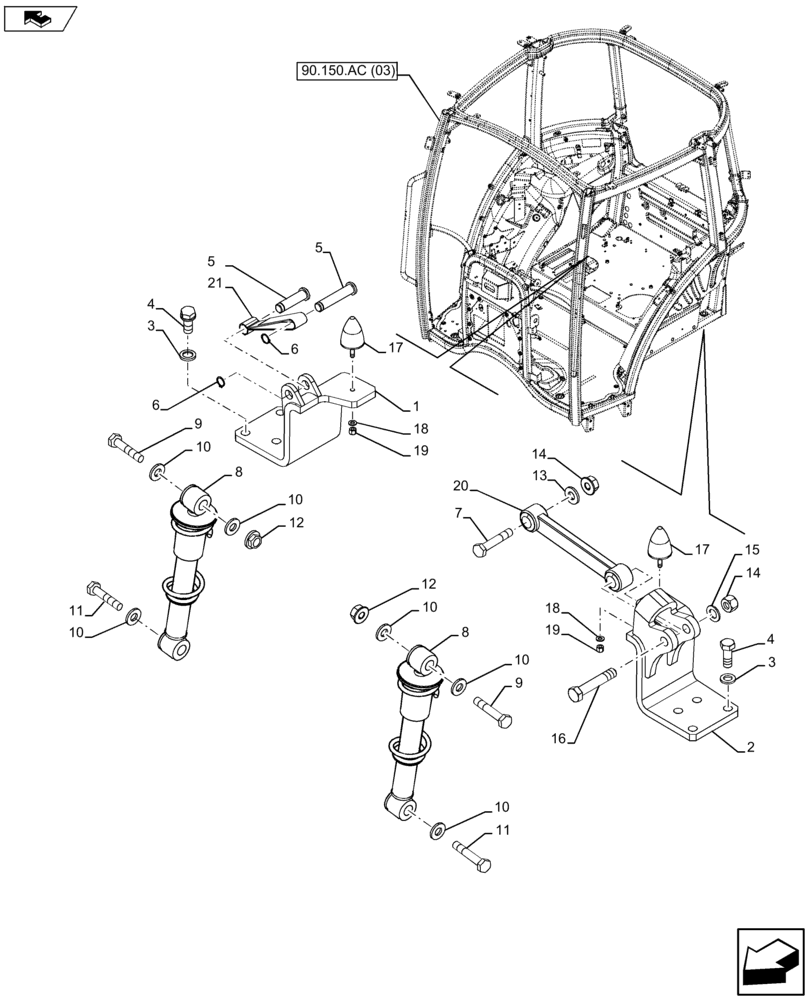

Запчасти Case IH FARMALL 105U (90.150.BB[04]) - VAR - 334144 - CAB SUPPORT, REAR, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47612247

SUPPORT

RH

1шт.

2

47612230

SUPPORT

LH

1шт.

3

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

4

15984334

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

8шт.

5

87543582

PIN,20mm OD x 104mm L

2шт.

6

11066871

CIRCLIP,M20

1шт.

7

11126134

BOLT,Hex, M20 x 120mm, Cl 10.9

1шт.

8

47460403

DAMPER

2шт.

9

11117231

BOLT,Hex, M14 x 2 x 100, Cl 10.9

2шт.

10

14496821

WASHER,15mm ID x 28mm OD x 2.5mm Thk

6шт.

11

11117431

BOLT,Hex, M14 x 110, 10.9

2шт.

12

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

2шт.

13

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

14

84246762

NUT

2шт.

15

14497101

WASHER,M20 x 37 x 3

1шт.

16

11125924

BOLT,Hex, M20 x 110mm, Cl 8.8

1шт.

17

44995061

RUBBER BUMPER

2шт.

18

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

19

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

20

87301561

TIE-ROD

1шт.

21

87357896

STRAP,165mm L

1шт.
