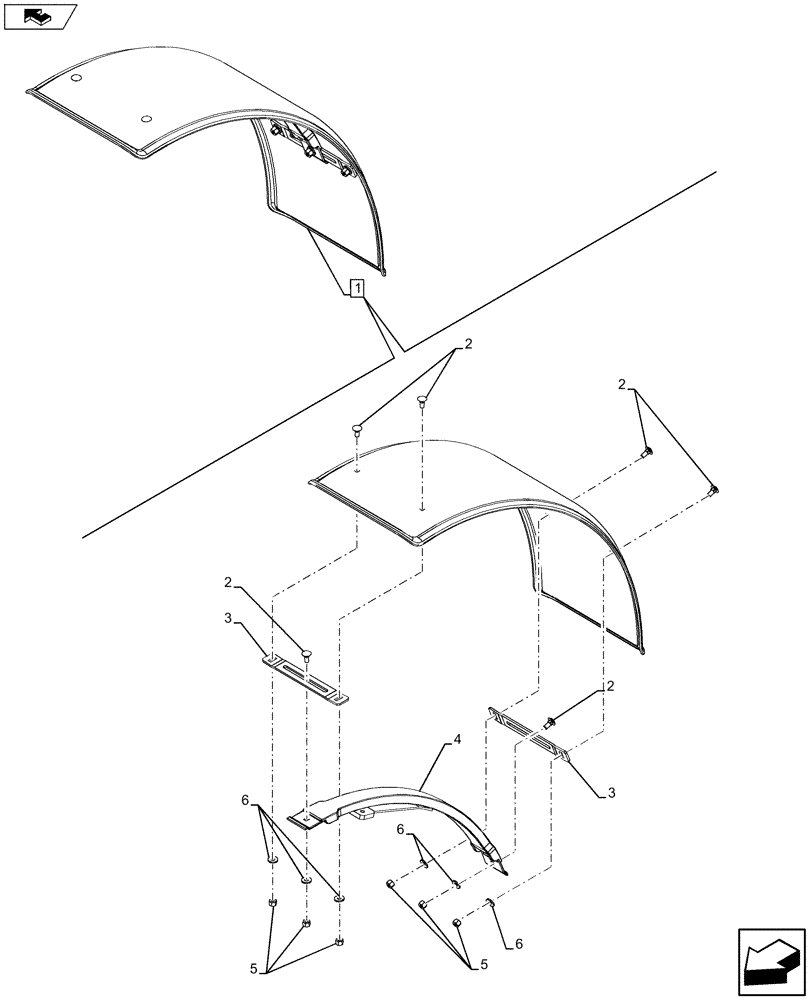

Запчасти Case IH FARMALL 105U (90.116.AC[14]) - VAR - 333486 - FRONT FENDER (480 MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87600020

FRONT FENDER

ASSY, Incl 2 - 7

1шт.

2

82021059

BOLT,Hex, M10 x 1.25 x 31mm

6шт.

3

82021040

SUPPORT

2шт.

4

47132609

SUPPORT

1шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

87612679

FRONT FENDER

1шт.
