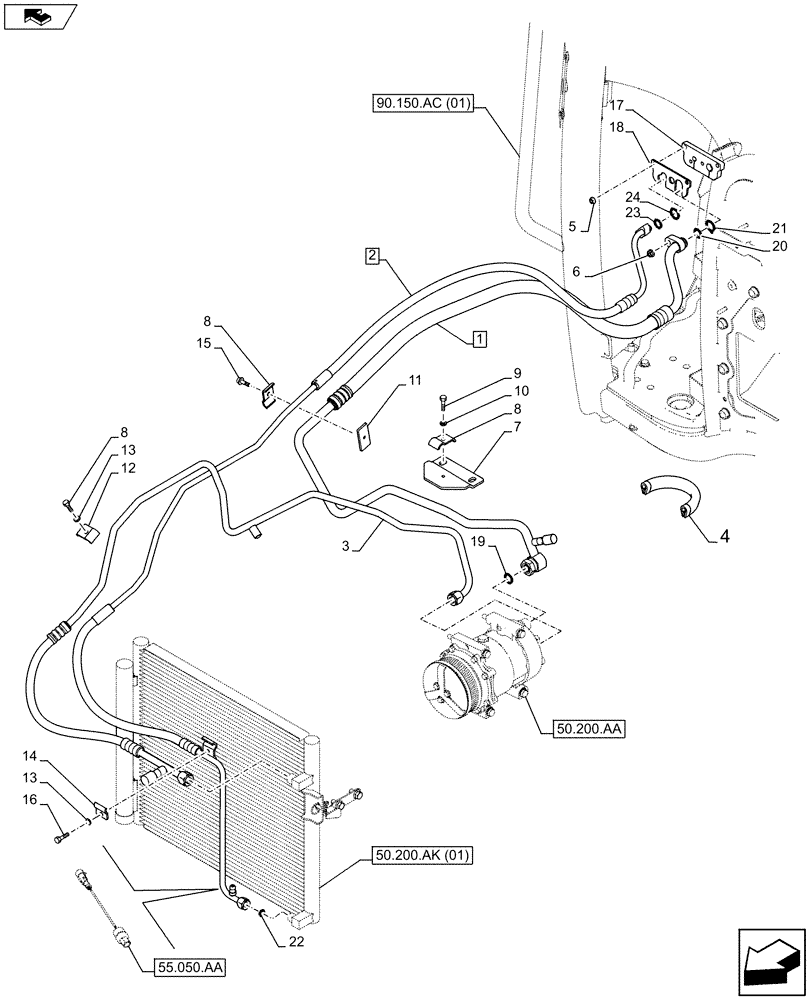

Запчасти Case IH FARMALL 105U (50.200.AB) - VAR - 744716 - AIR CONDITIONING, PIPE (50) - CAB CLIMATE CONTROL

1

47431833

A/C HOSE

ASSY, Incl 19 - 21

1шт.

2

47431835

A/C HOSE

ASSY, Incl 22 - 24

1шт.

3

47402515

A/C HOSE

1шт.

4

5096094

SEAL,100mm L

1шт.

5

13046011

NUT,Flange Hex, M5

2шт.

6

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

7

47408041

BRACKET

1шт.

8

84476872

BRACKET

2шт.

9

10902631

BOLT,Hex, M6 x 25mm, Cl 10.9

2шт.

10

12649601

WASHER,6.15mm ID x 11.5mm OD x 2.5mm Thk

1шт.

11

84534676

BRACKET

1шт.

12

84475360

BRACKET

1шт.

13

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

14

84577651

BRACKET

1шт.

15

16286124

BOLT,M6 x 20mm, 8.8 DAC

1шт.

16

10902031

BOLT,Hex, M6 x 12mm, Cl 10.9

1шт.

17

47443947

PLATE

1шт.

18

47443943

GASKET

1шт.

19

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

20

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

21

14450783

O-RING,13.4mm ID x 2.4mm Width

1шт.

22

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

23

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

24

14450483

O-RING,1.8mm Thk x 6.7mm ID

1шт.
