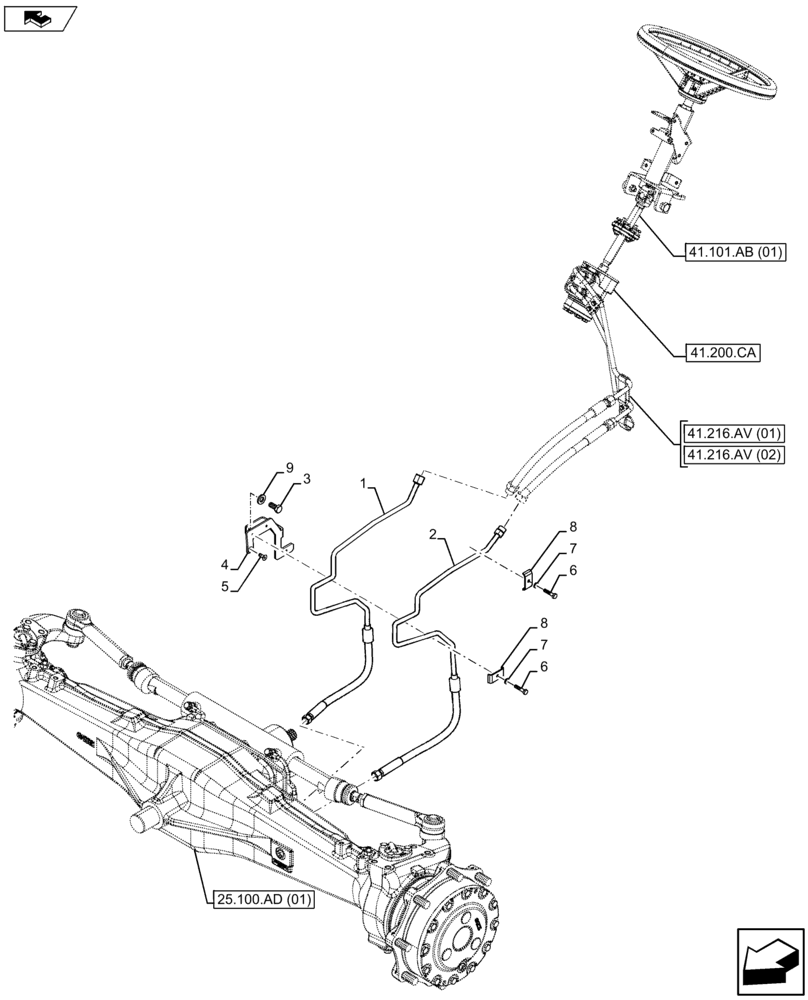

Запчасти Case IH FARMALL 105U (41.216.AV[03]) - VAR - 334144, 335683 - STEERING CYLINDER, HYDR LINES (41) - STEERING

1

47431156

HYD TUBE

1шт.

2

47431158

HYDRAULIC HOSE

1шт.

3

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

4

47431155

BRACKET

1шт.

5

14442031

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9

1шт.

6

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

3шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

8

84519154

HOSE CLAMP

3шт.

9

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.
