(39.140.AL[02]) - VAR - 330471 - REAR, WHEEL, BALLAST

Запчасти Case IH FARMALL 105U (39.140.AL[02]) - VAR - 330471 - REAR, WHEEL, BALLAST (39) - FRAMES AND BALLASTING

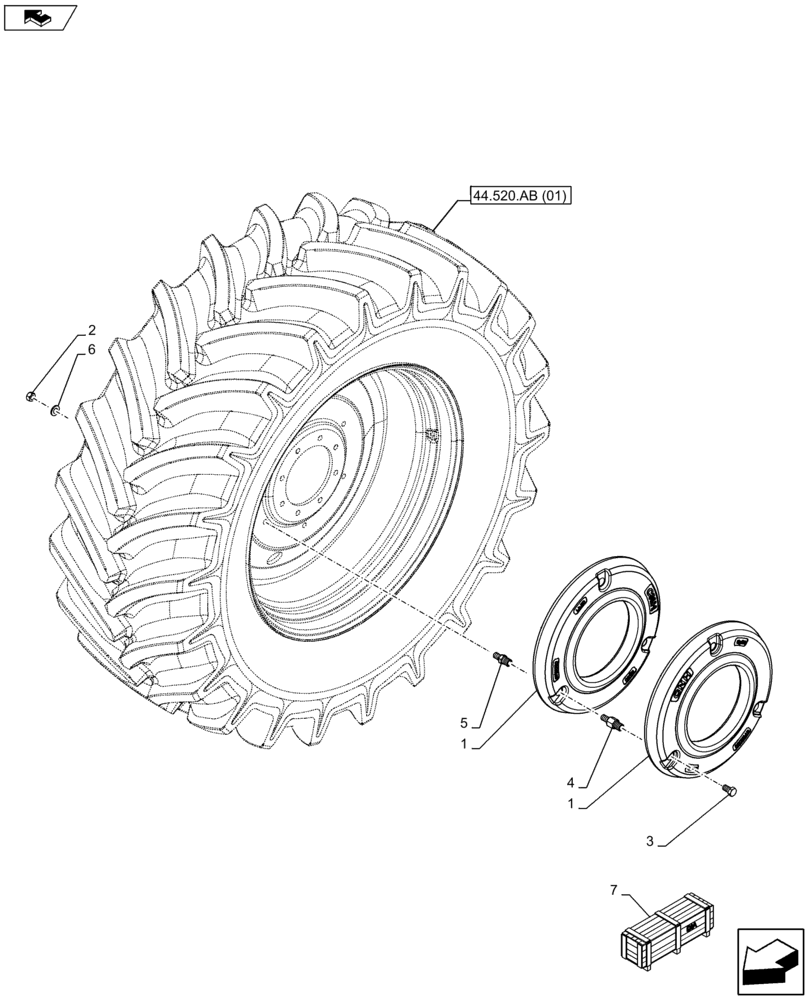

Схема запчастей Case IH FARMALL 105U - (39.140.AL[02]) - VAR - 330471 - REAR, WHEEL, BALLAST (39) - FRAMES AND BALLASTING
2
3
7
home
6
5
1
4
1
44.520.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47373519

WHEEL WEIGHT,50kg

6шт.

2

12164124

NUT,M16 x 1.5, Cl 8

6шт.

3

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

6шт.

4

44018047

SCREW,M16 x 1.5 x 78mm

12шт.

5

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

7

718471080

DIA KIT, TRACTOR

Rear Ballast (6 x 50Kg), Incl 1 - 6

1шт.
