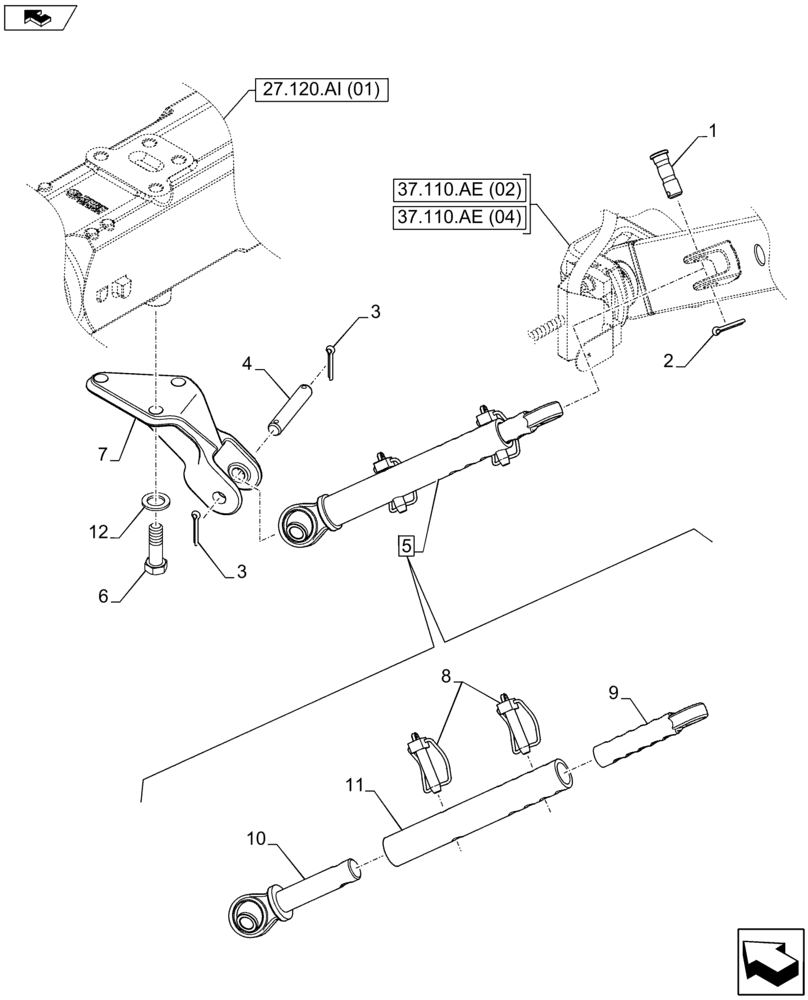

Запчасти Case IH FARMALL 105U (37.120.AF[01]) - VAR - 390435 - IMPLEMENT ATTACHMENT DEVICE - STABILIZERS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47133051

PIN,20mm OD x 59mm L

2шт.

2

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

2шт.

3

10798304

COTTER PIN,6.3mm OD x 36mm L

4шт.

4

5125861

PIN,19mm OD x 105mm L

2шт.

5

84338289

TOP LINK

ASSY, Incl 8 - 11

2шт.

6

11244634

BOLT,Hex, M18 x 1.5 x 60, 10.9

6шт.

7

84347440

SUPPORT

2шт.

8

82019234

PIN,14mm OD

2шт.

9

84336747

CONNECTING LINK

1шт.

10

84336745

LOWER LINK

1шт.

11

84336746

SLEEVE

1шт.

12

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

6шт.
