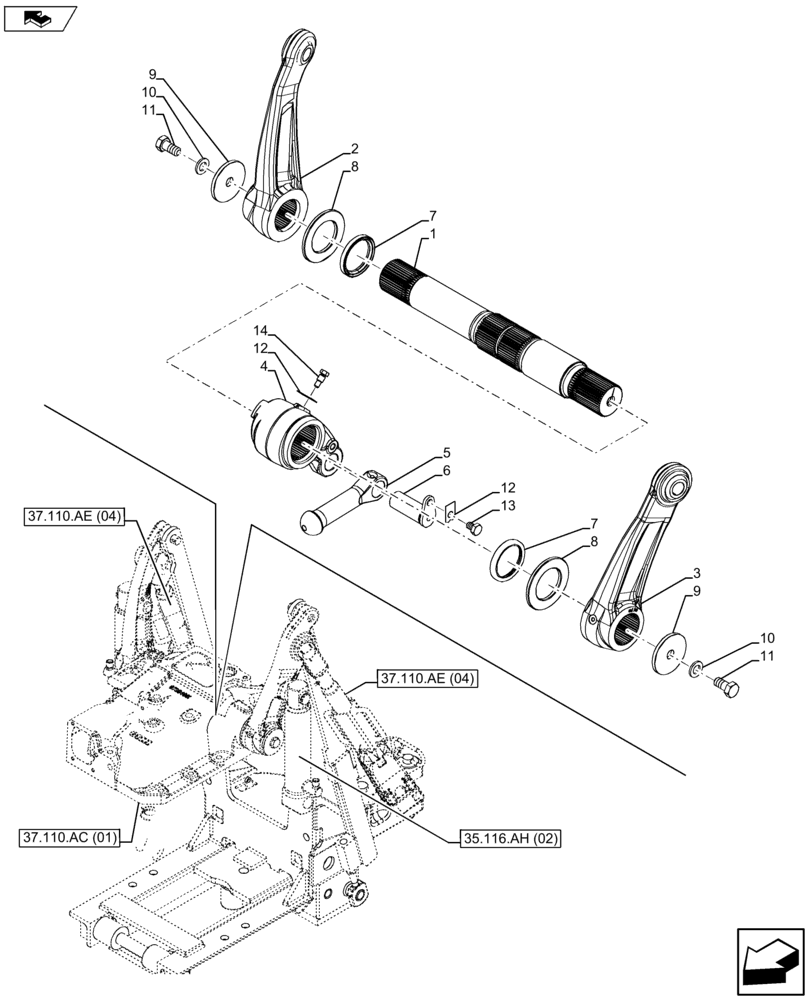

Запчасти Case IH FARMALL 105U (37.110.AQ[01]) - VAR - 390832 - EDC INTERNAL RAM ONLY WITH / WITHOUT FPTO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5117187

ROCKSHAFT,488mm L, 48T, 42T

1шт.

2

5123959

LIFT ARM

RH

1шт.

3

5183052

LIFT ARM

LH

1шт.

4

5165509

ARM

1шт.

5

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

6

5122356

PIN,30mm OD x 74mm L

1шт.

7

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

2шт.

8

5111082

SPACER,55mm ID x 90mm OD x 6mm L

2шт.

9

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

10

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

11

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

12

14198810

LOCKING PLATE,M10

1шт.

13

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

14

5117190

SET SCREW,M10 x 1.25 x 23mm

1шт.
