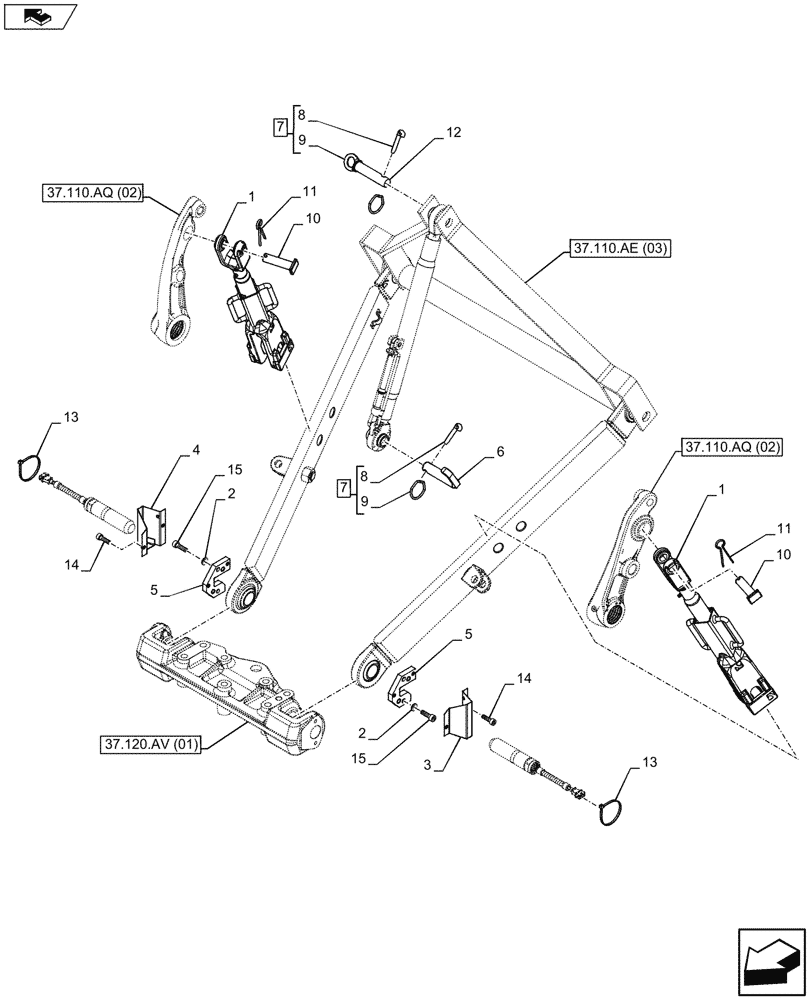

Запчасти Case IH FARMALL 105U (37.110.AE[05]) - VAR - 390435 - IMPLEMENT ATTACHMENT DEVICE - LIFT LINKS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84596113

LIFTING ROD

2шт.

2

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

3

83998829

COVER

1шт.

4

83998830

COVER

1шт.

5

83998827

RETAINER

2шт.

6

84486705

HEADED PIN

1шт.

7

5166585

LOCK PIN,11mm OD

ASSY, Incl 8, 9

2шт.

8

4967706

ROLL PIN,52mm L

1шт.

9

4967705

RING

1шт.

10

47126271

PIN,22mm OD x 84mm L

2шт.

11

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

12

822483

PIN,25.5mm OD x 137mm L

1шт.

13

14560287

CABLE TIE,207.00mm L

2шт.

14

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

4шт.

15

47134668

HEX SOC SCREW,M10 x 1.25 x 35mm

4шт.
