(37.110.AE[03]) - VAR - 390435 - IMPLEMENT ATTACHMENT DEVICE - FLEX END LINKS

Запчасти Case IH FARMALL 105U (37.110.AE[03]) - VAR - 390435 - IMPLEMENT ATTACHMENT DEVICE - FLEX END LINKS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

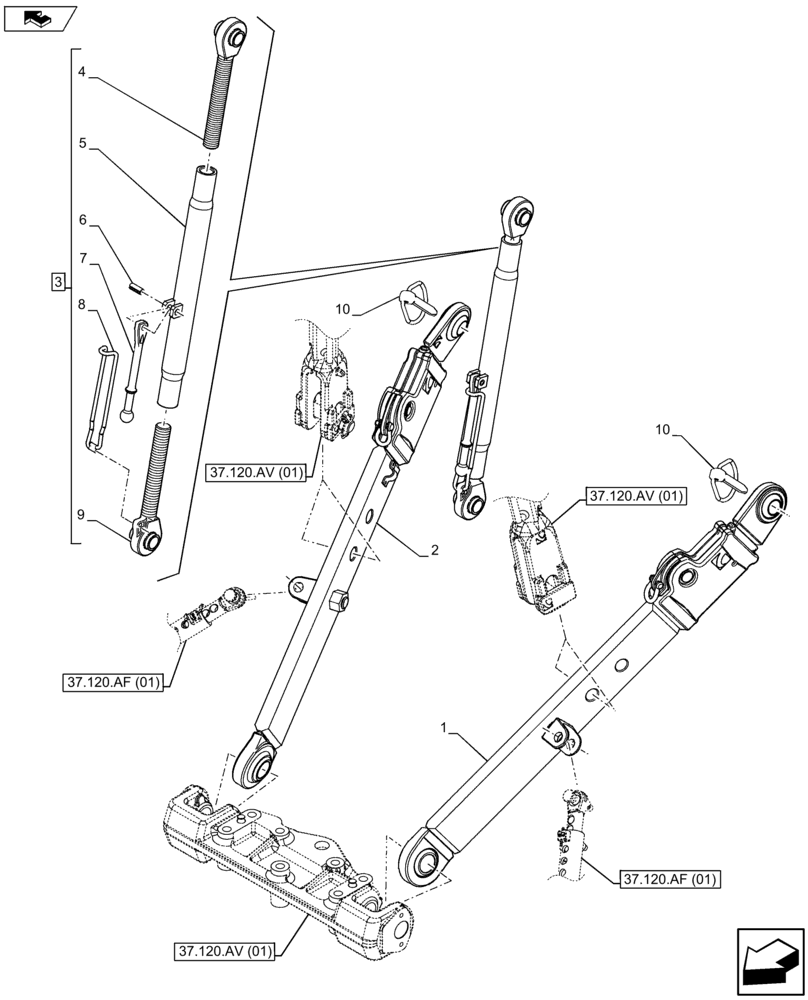

Схема запчастей Case IH FARMALL 105U - (37.110.AE[03]) - VAR - 390435 - IMPLEMENT ATTACHMENT DEVICE - FLEX END LINKS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.af (01)
5
home
6
4
10
8
37.120.av (01)
37.120.af (01)
37.120.av (01)
7
37.120.av (01)
1
10
9
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84338282

LIFT ARM

1шт.

2

84338286

LIFT ARM

1шт.

3

47368076

TOP LINK

ASSY, Incl 4 - 9

1шт.

4

5143010

LINK,M30 x 3, LH Threads

1шт.

5

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 3

1шт.

6

14174371

LOCK PIN,M12 x 30, Slotted

1шт.

7

47367634

LEVER

1шт.

8

5140619

SPRING,215mm L

1шт.

9

5143008

LINK,M30 x 3

1шт.

10

5166585

LOCK PIN,11mm OD

2шт.
